Mean Well

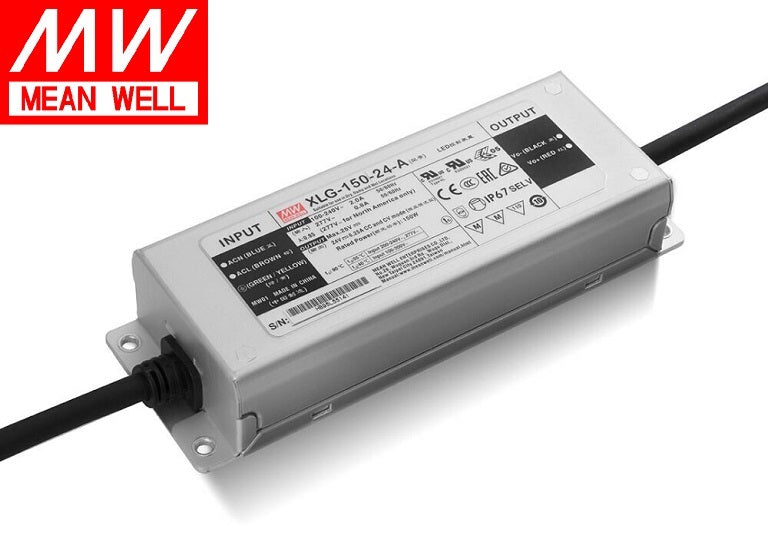

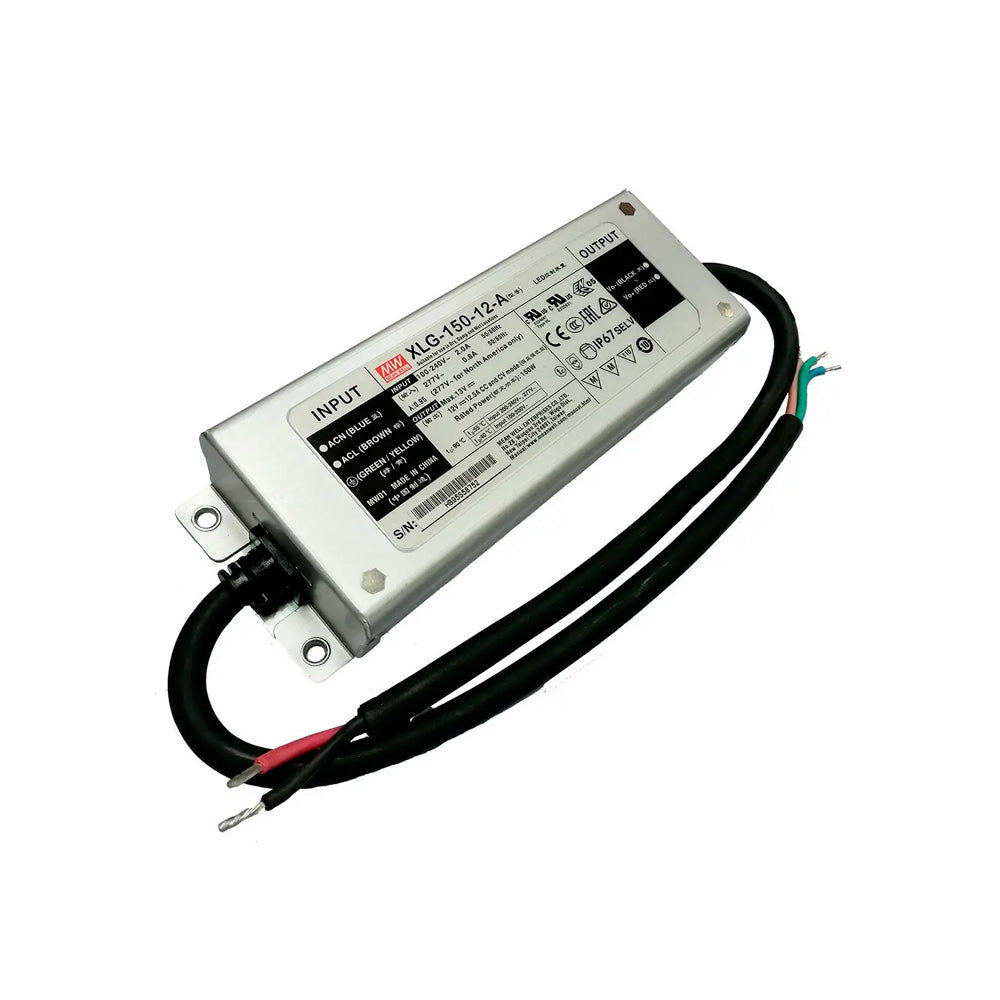

Power supply XLG-150W
Power supply XLG-150W
Couldn't load pickup availability

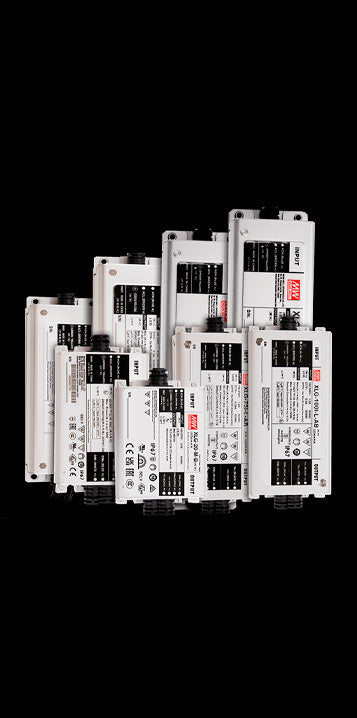

The Mean Well XLG Series of 12 and 24 volt, IP67-rated, high-reliability power supplies are a powerful solution for outdoor and industrial lighting applications. These power supplies provide stable operation in the harshest environments and are protected against dust and moisture, making them ideal for street lighting, LED systems, architectural lighting and advertising structures. Mean Well's XLG series combines high efficiency, built-in overload protection and long life. Order XLG units with IP67 protection for stable and safe operation of your equipment in all weather conditions!
- Premium Power Supply
- 5 year warranty

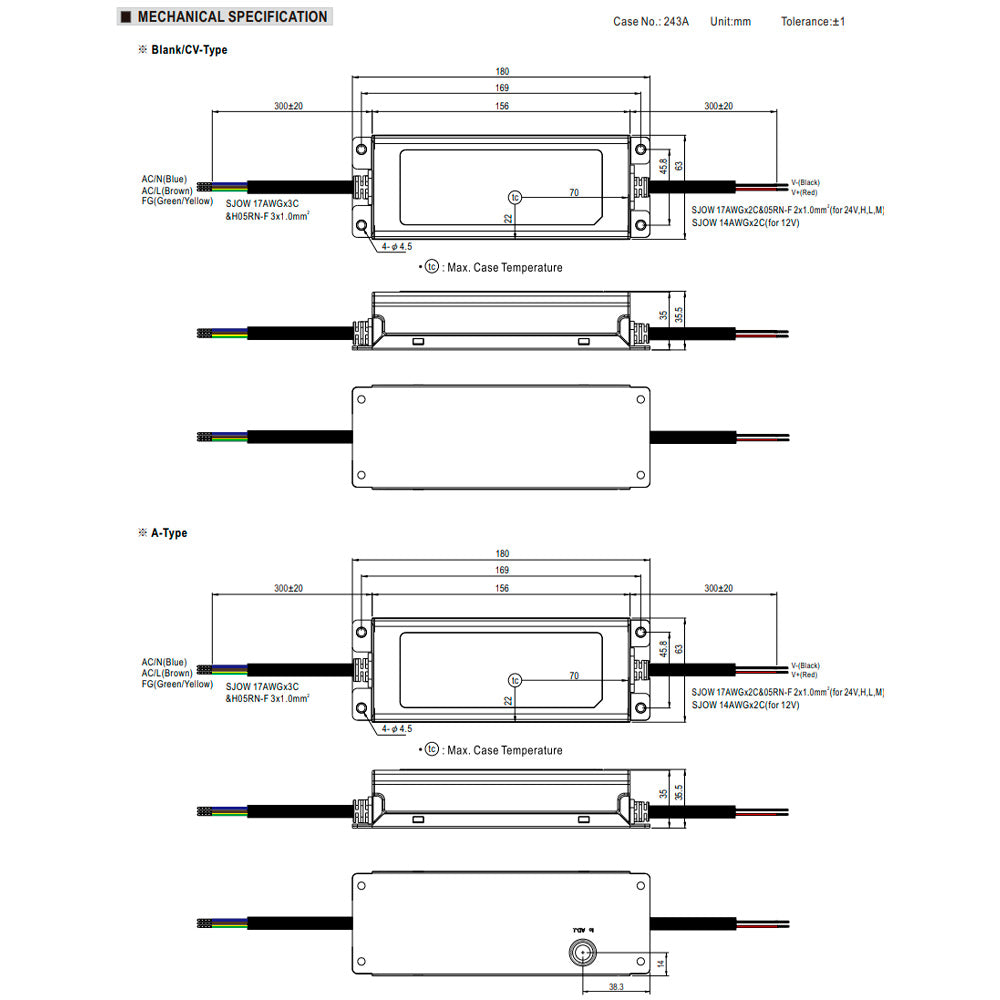

Dimensions
Dimensions
180x63x35.5 mm
Product description
Product description
Wide input range 100-305V AC( Class I)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Compliance to EN60335-1 household application
Life time >50,000 hrs. and 5 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / Volts
Output current: 12.5 / 6.25 Ampere
Power consumption: 150 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode.XLG-150 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for 40°C~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-150 series comply with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
