Mean Well
Power supply UHP-200W
Power supply UHP-200W
Couldn't load pickup availability

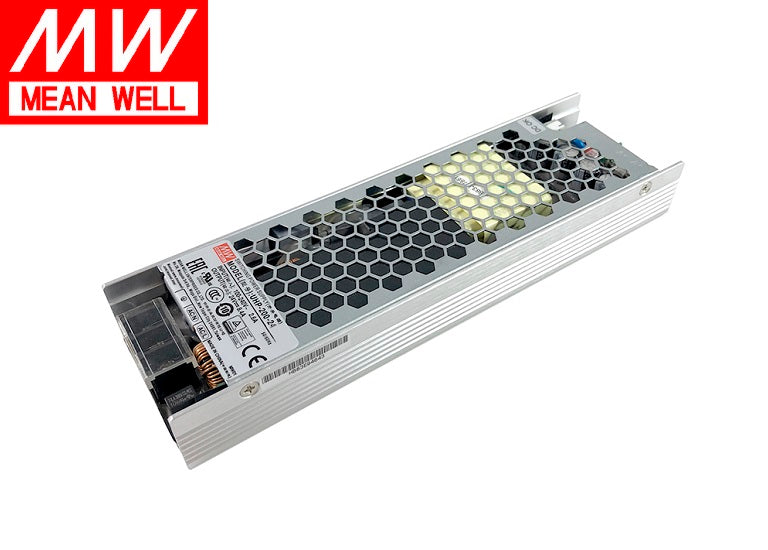

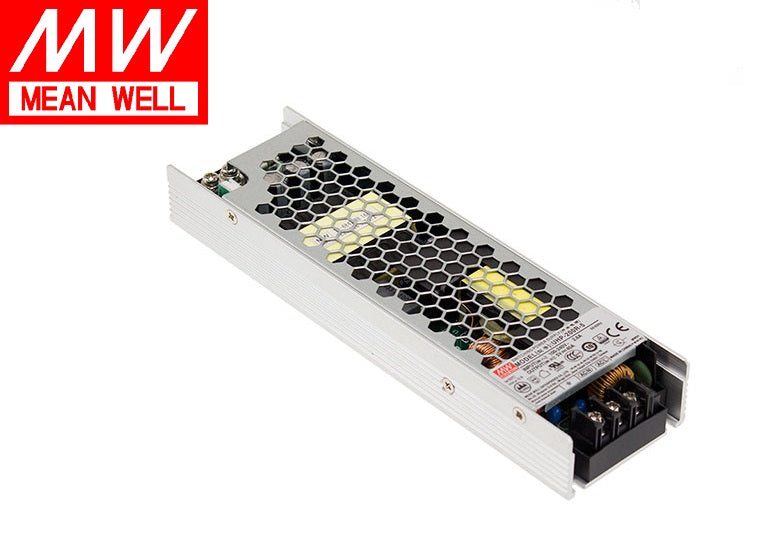

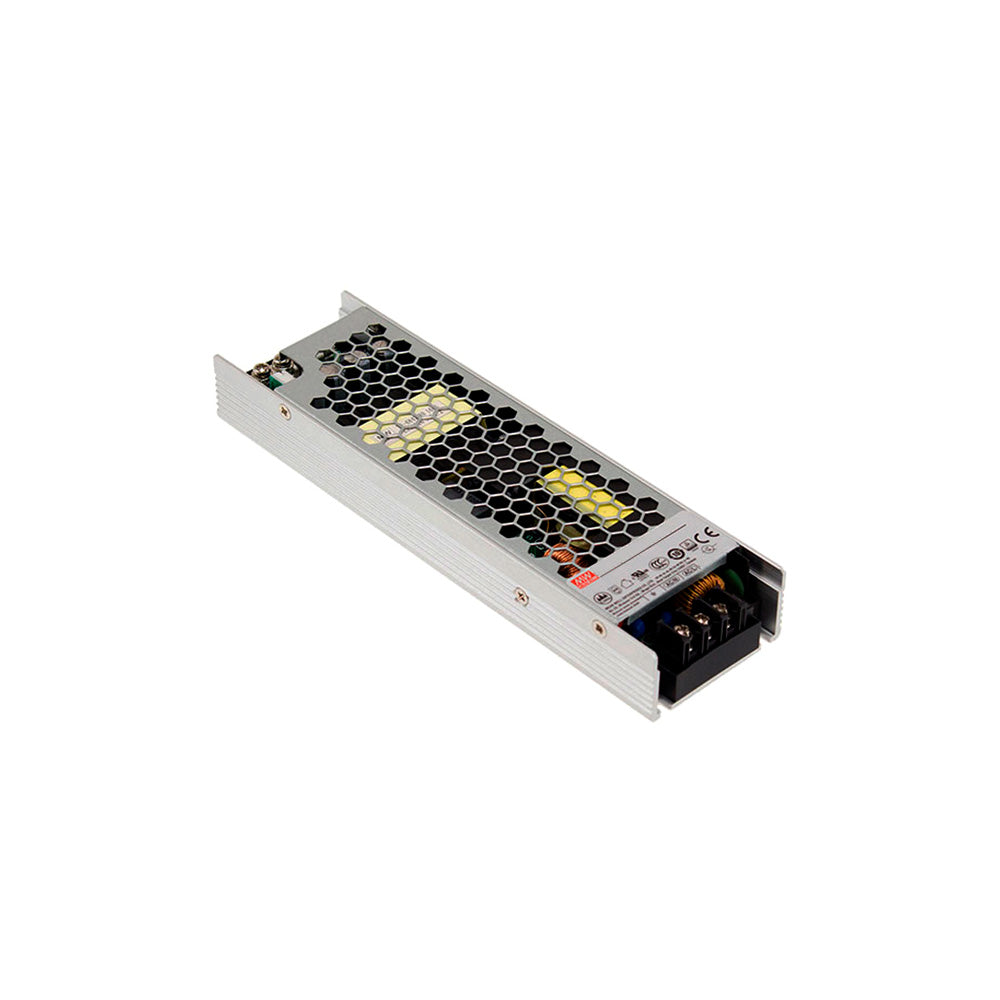

Mean Well UHP-200 Slim series 12, 24 and 48 volt perforated metal case power supplies are a powerful passively cooled solution for industrial equipment and LED systems. The perforated housing provides excellent heat dissipation, allowing the UHP units to operate consistently even under high loads. These compact and reliable power supplies from Mean Well are suitable for use in automation, lighting, telecommunications and other industrial applications. High energy efficiency, overload protection and durability make the UHP series an ideal choice for projects where stability and reliability are important. Order Mean Well UHP power supplies and ensure quality power supply for your equipment!
- Premium Power Supply
- 3 year warranty

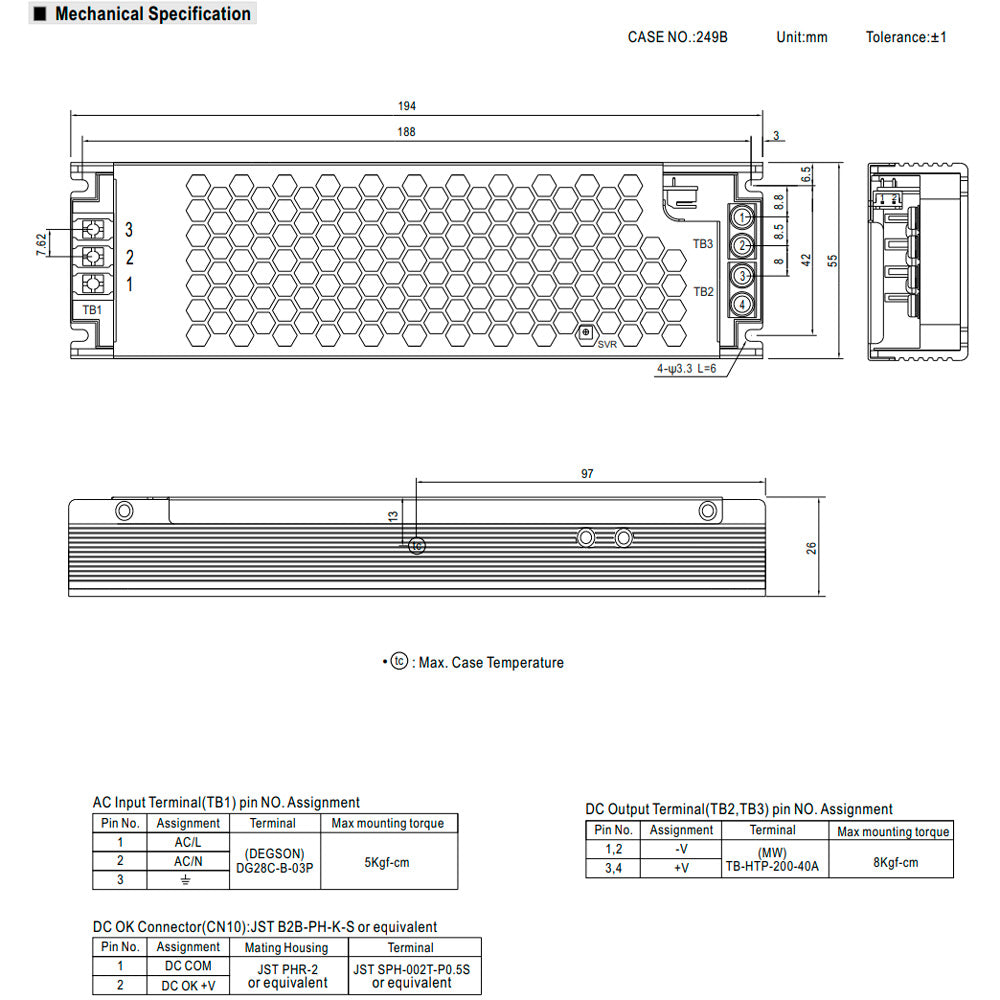

Dimensions
Dimensions
194x55x26mm
Product description
Product description
Slim and Low profile (26mm)
Fanless design,200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70°C working temperature
Protections: Short circuit / Overload /
Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
3 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 16.7 / 8.4 / 4.2 Ampere
Power consumption: 200 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design.
Adopting the full range 90-264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V,48V and 55V. In addition to the high efficiency up to 94%, that the whole series operates from -30°C ~ 70C under air convection without fan. UHP-200 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,UL 62368-1 and GB 4943.1. UHP-200 series serves as a high performance power supply solution for various industrial applications.
