Mean Well

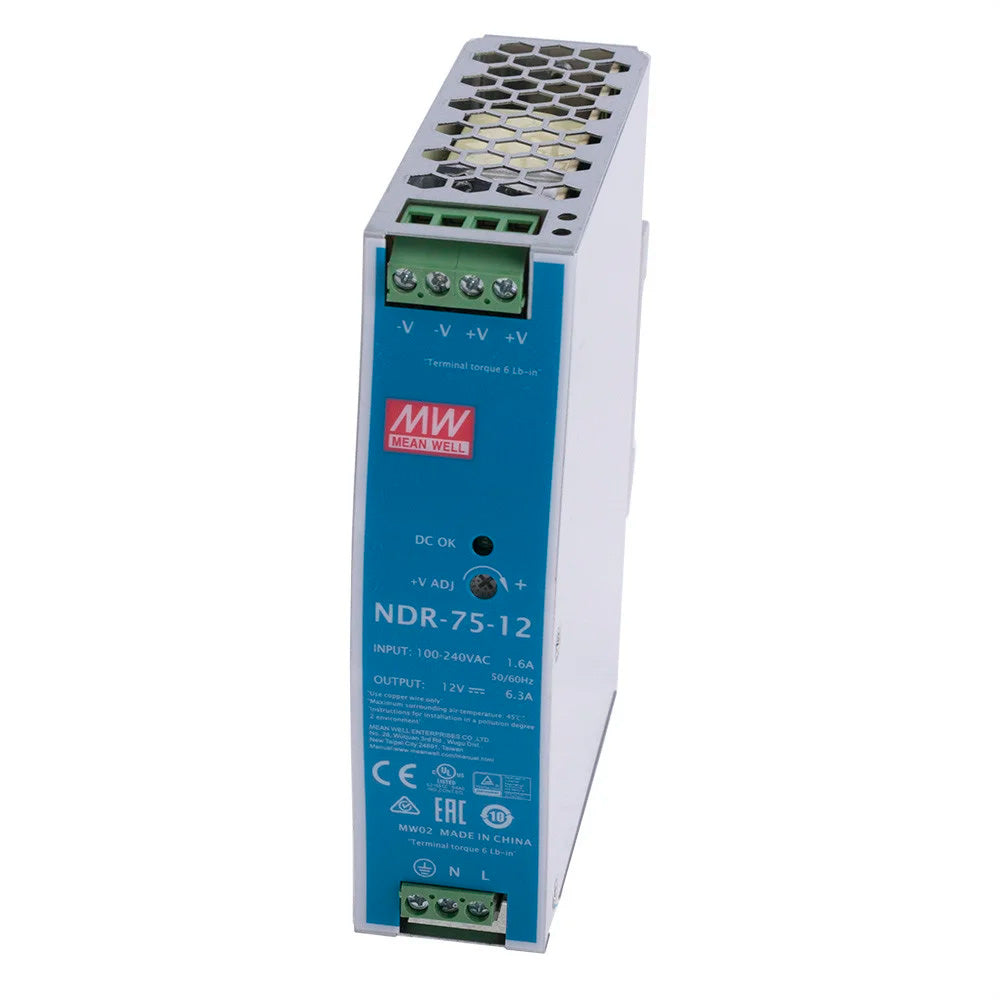

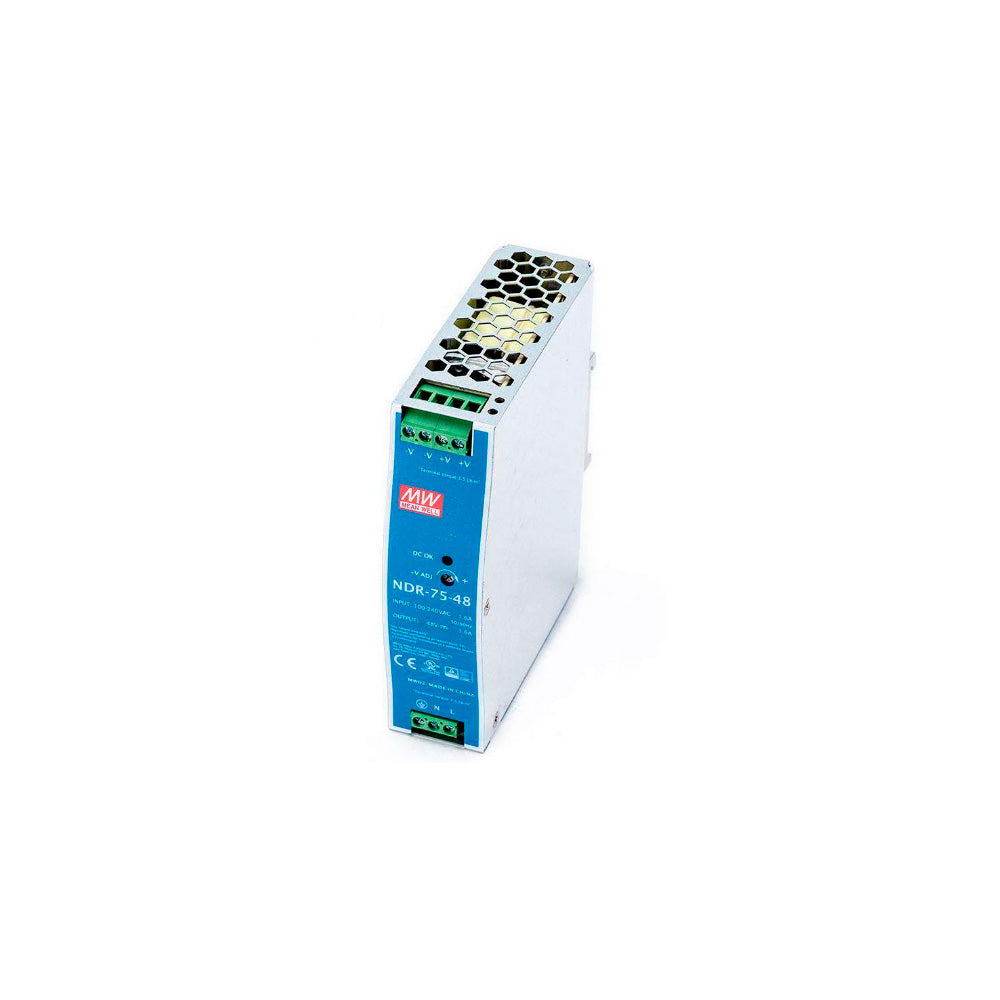

Power supply NDR-75W
Power supply NDR-75W
Couldn't load pickup availability

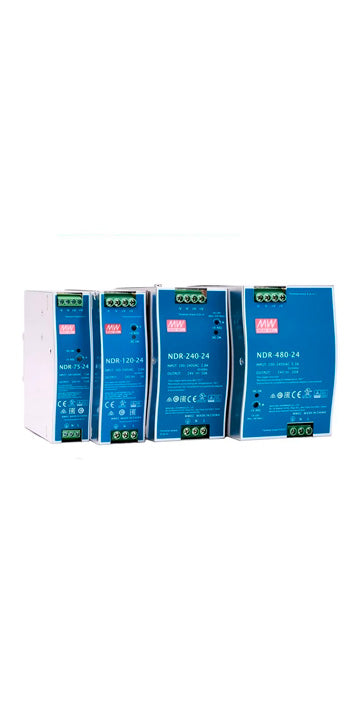

Mean Well NDR Series 12, 24, and 48 volt power supplies in perforated metal DIN rail mount enclosures are an efficient solution for industrial equipment and automation applications. The perforated housing provides superior cooling, extending life and improving reliability even under heavy loads. The NDR Series offers compact size, energy efficiency and built-in overload, short circuit and overvoltage protection. Ideal for lighting, automation, telecommunications equipment and other industrial applications. Order Mean Well NDR DIN rail power supplies and ensure stable power supply and longevity of your systems!
- Premium Power Supply
- 3 year warranty

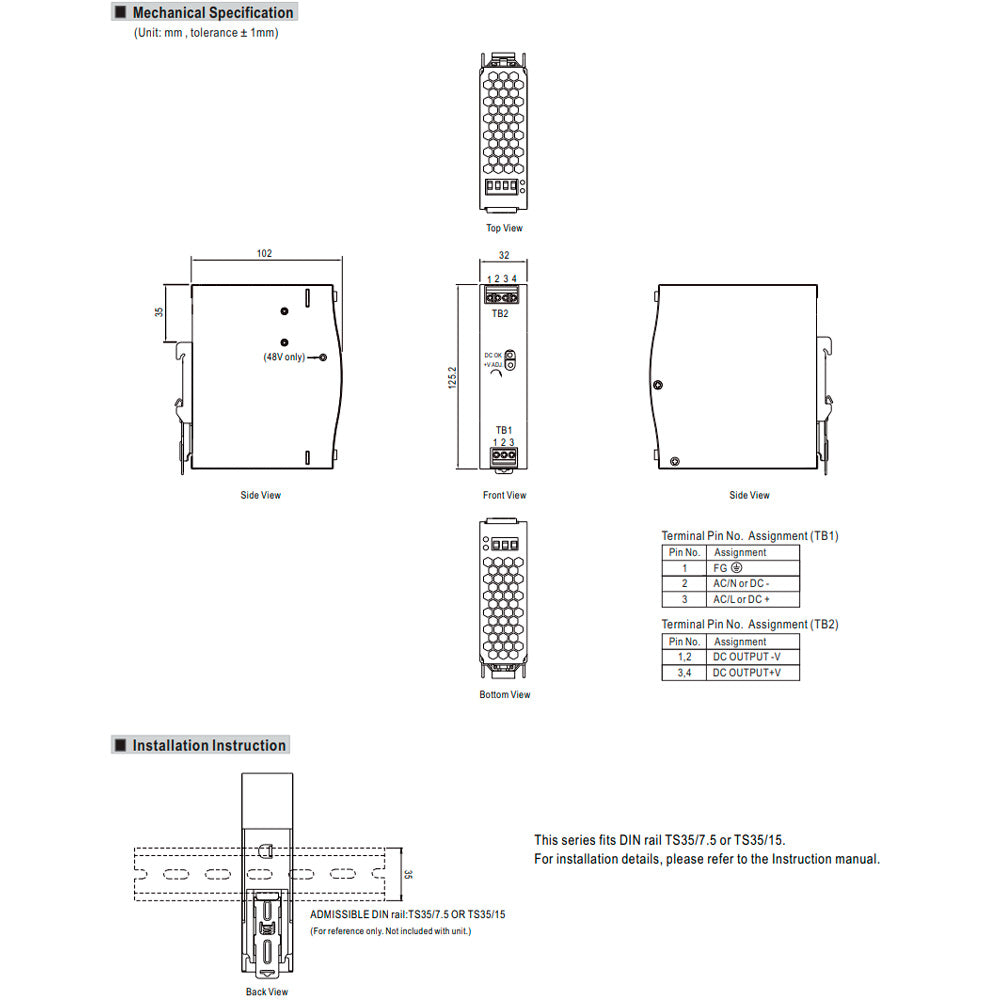

Dimensions
Dimensions
102x32x125.2 mm
Product description
Product description
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

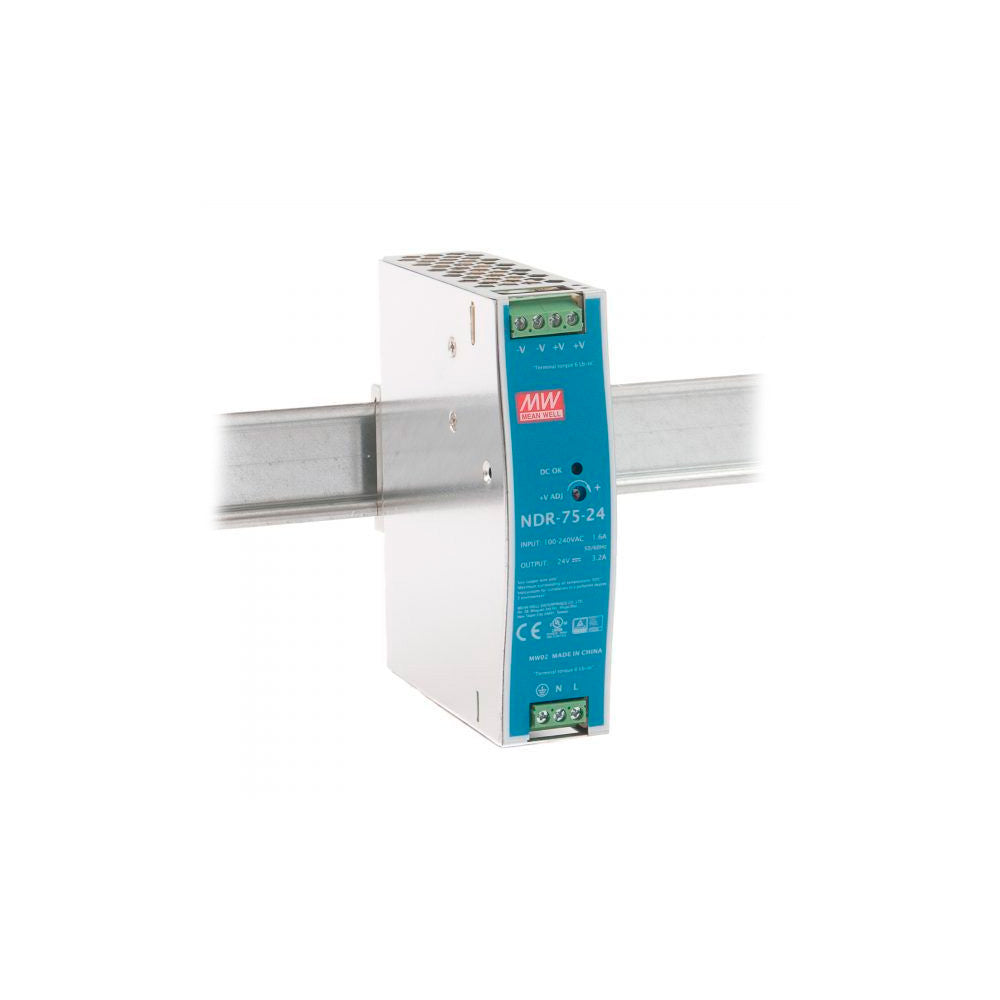

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
3 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 6.3 / 3.2 / 1.6 Ampere
Power consumption: 75 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
NDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264 VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-75 a very competitive power supply solution for industrial applications.
