Mean Well
Power supply EDR-75W
Power supply EDR-75W
Couldn't load pickup availability

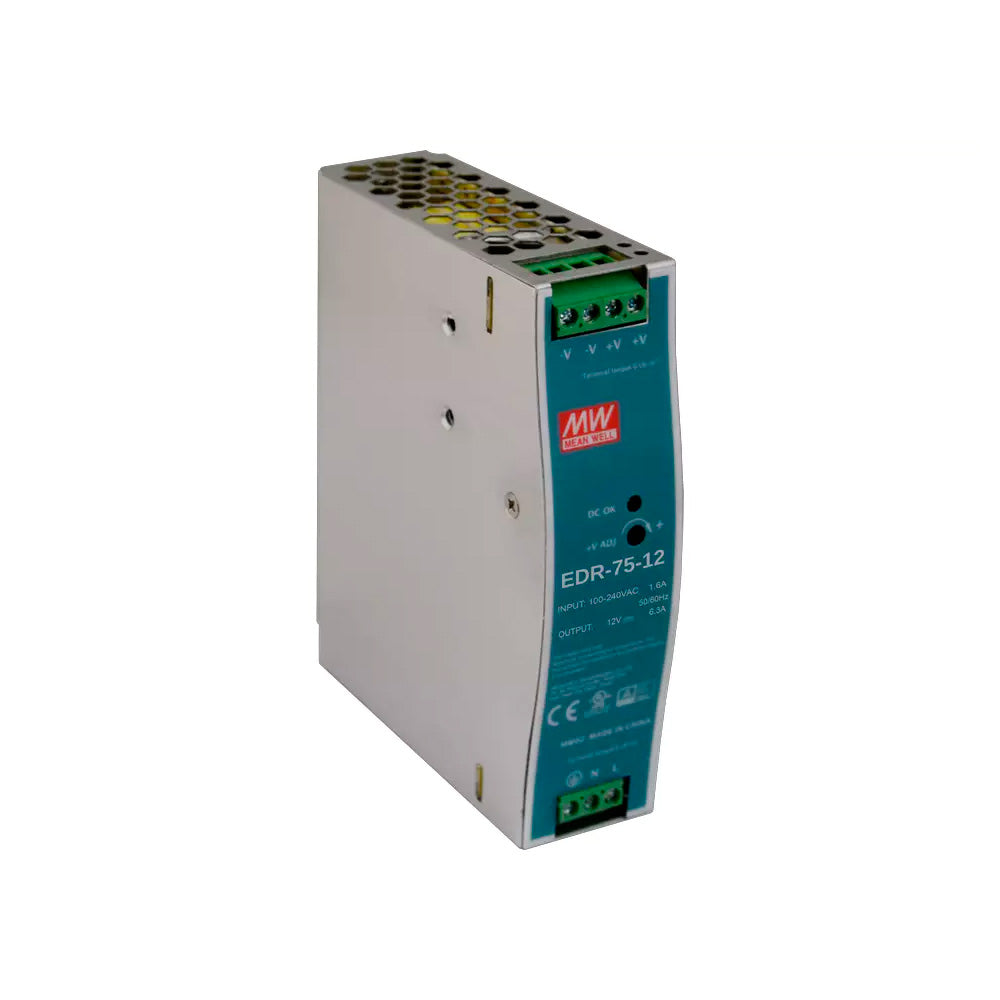

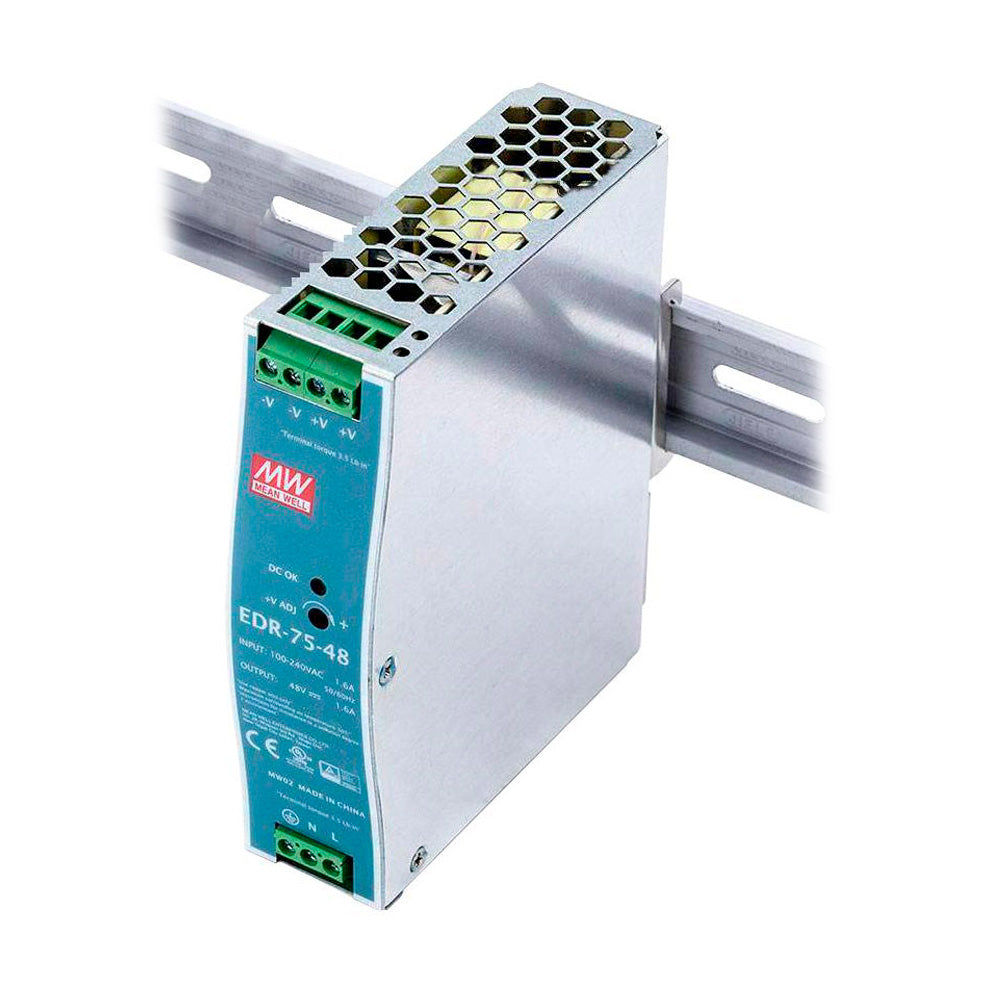

The Mean Well EDR-75 Series 12, 24 and 48 volt perforated metal DIN rail mount power supplies are a reliable, cooled solution for industrial applications. The perforated housing improves heat dissipation, which extends unit life and increases performance. These compact and energy efficient EDR power supplies are suitable for automated systems, lighting and telecommunication equipment, providing stable and safe power supply. Resistant to voltage fluctuations, they are short-circuit and overload protected, making them an ideal choice for industrial projects. Order Mean Well EDR DIN rail power supplies and ensure reliable and long-lasting power for your systems!
- Premium Power Supply
- 3 year warranty

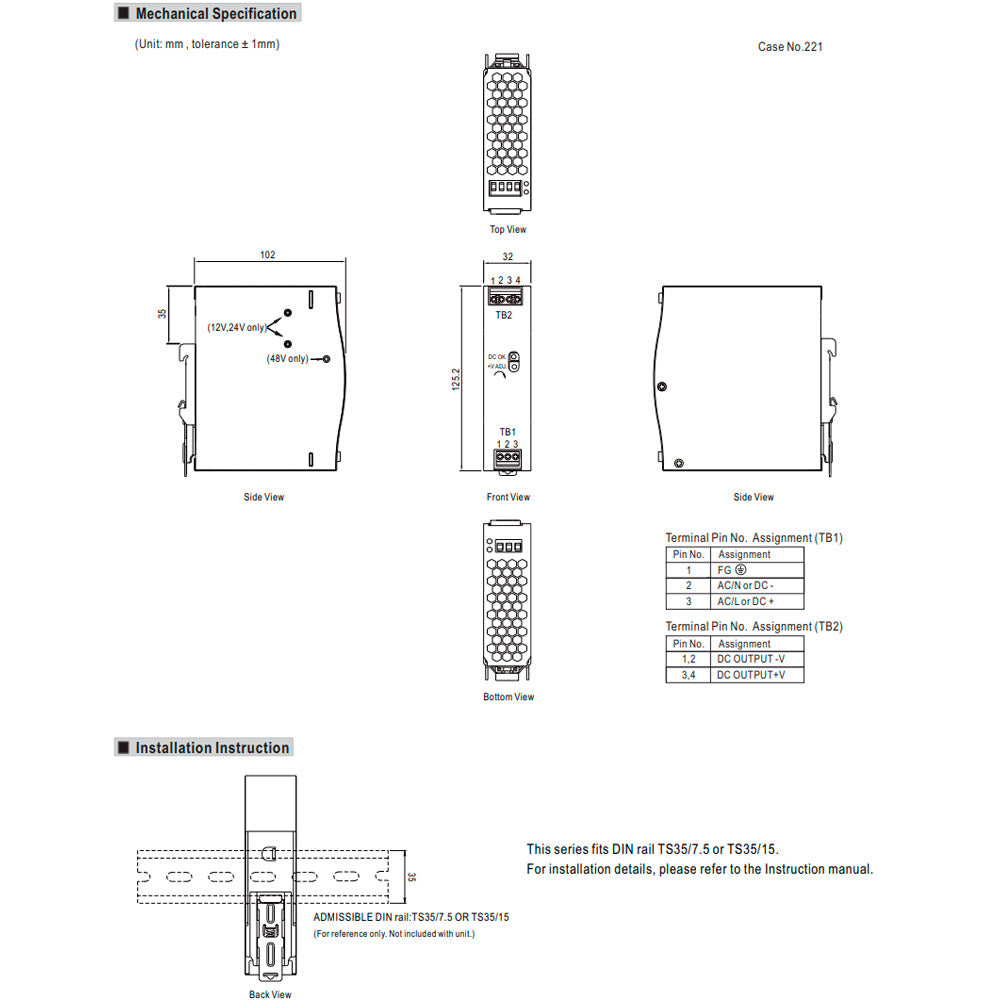

Dimensions
Dimensions
102x32x125.2 mm
Product description
Product description
Metal case, low cost
1∅, full range input
Slim size, model width: 32 ~ 40mm
EMC EN55022 class A
Assemble on industrial rail TS-35 / 7.5 or 15
2 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 6.3 / 3.2 / 1.6 Ampere
Power consumption: 75 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
EDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. EDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20°C and 60°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-75 a very competitive power supply solution for industrial applications.
