Mean Well
Power supply LSD-80W
Power supply LSD-80W
Couldn't load pickup availability
The Mean Well SLD-80 Slim Series 12 and 24 volt ultra-slim power supplies in a compact plastic housing are ideal for flush mounting and space-constrained applications. The ultra-slim design makes the SLD Slim units easy to place in hard-to-reach places, making them a great choice for powering LED strips, architectural lighting and decorative lighting. These reliable and energy efficient power supplies provide stable voltage, short circuit and overload protection. The perfect combination of compactness, quality and durability! Order Mean Well SLD Slim flush mount power supplies and realize your projects with minimum effort!
- Premium Power Supply
- 3 year warranty

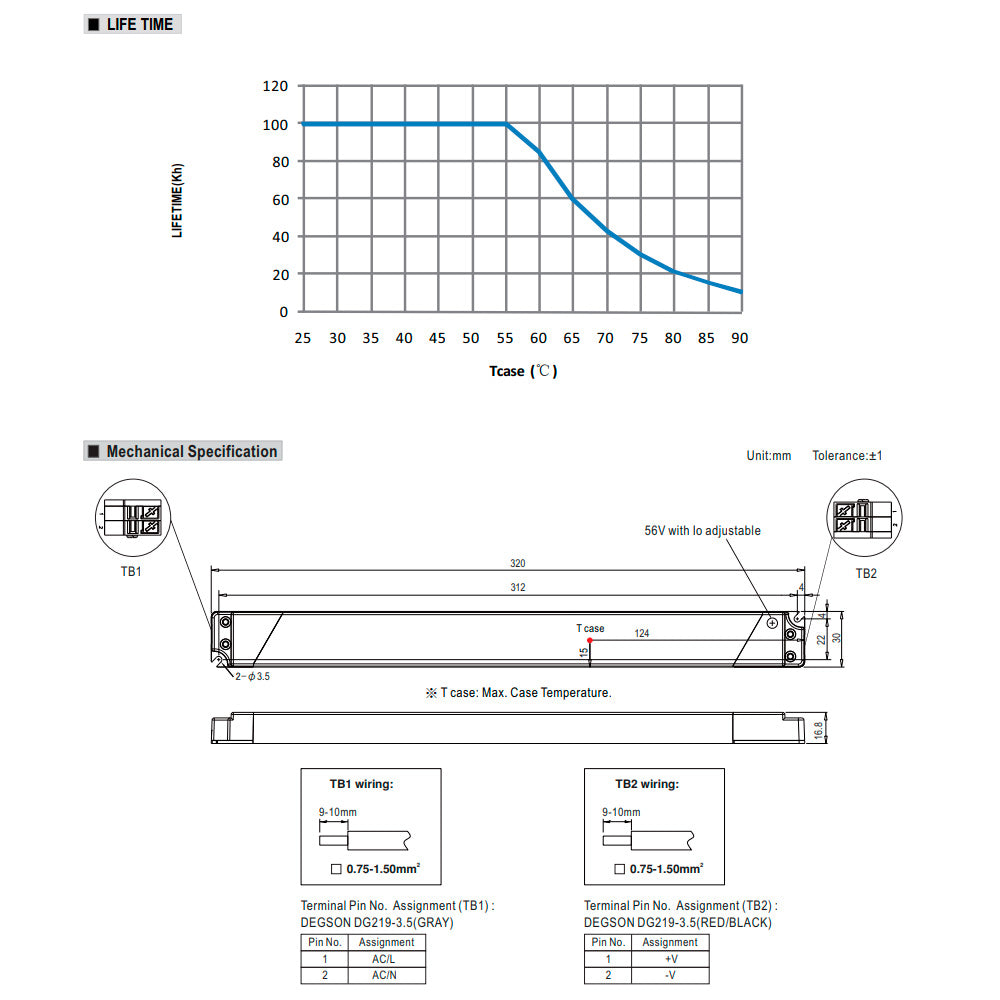

Dimensions
Dimensions
320x30x16.8 mm
Product description
Product description
Constant Voltage + Constant Current mode output
Wide inqut range 110-305VAC with PFC function
Compliance with BS EN/EN61347 regulation
Class 2/L power unit
Slim and Linear housing Design
No load power consumption <0.5W
3 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 Volts
Output current: 6.6 / 3.3 Ampere
Power consumption: 80 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
SLD-80 series is a 80W AC/DC LED driver featuring the dual modes constant voltage and constant current output. SLD-80 operates from 110~305VAC and offers models with different rated voltage ranging between 12V and 56V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20°C - +90C case temperature under free air convection. SLD-80 design with low profile and linear housing which is good for signage and linear luminaire applications.
