Mean Well
Power supply LRS-75W
Power supply LRS-75W
Couldn't load pickup availability
The LRS Series 12, 24 and 48 volt AC/DC power supplies from Mean Well are reliable and compact solutions for powering LED equipment and other electronics. The LRS series is characterized by high efficiency (up to 90%) and improved heat dissipation design, which ensures stable operation in the temperature range of -30°C to +70°C. These power supplies have overheat, overload and short circuit protection, making them ideal for long-term use in professional and residential lighting applications.
- Premium Power Supply
- 3 year warranty

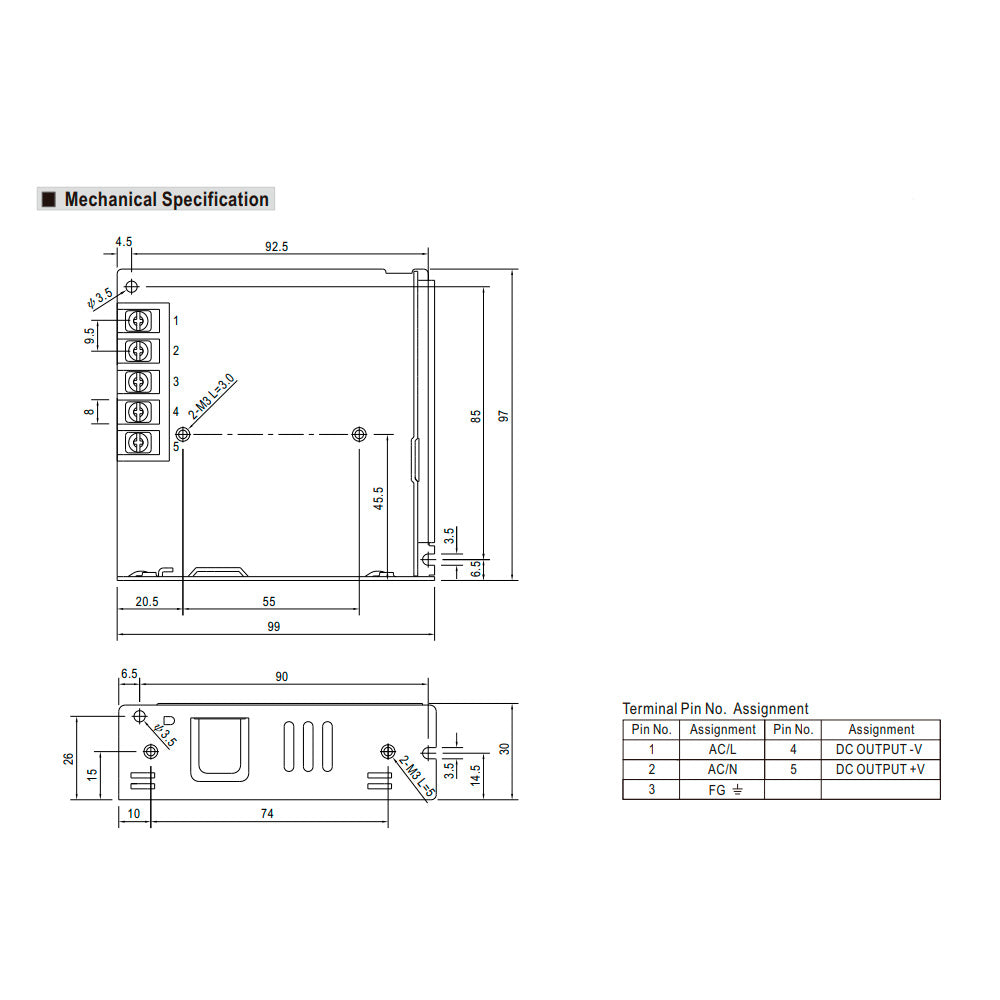

Dimensions
Dimensions
99х97х30mm
Product description
Product description
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
High operating temperature up to 70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/BS EN/EN 60335-1 (PD3) and
IEC/BS EN/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 6 / 3.2 / 1.6 Ampere
Power consumption: 75 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description

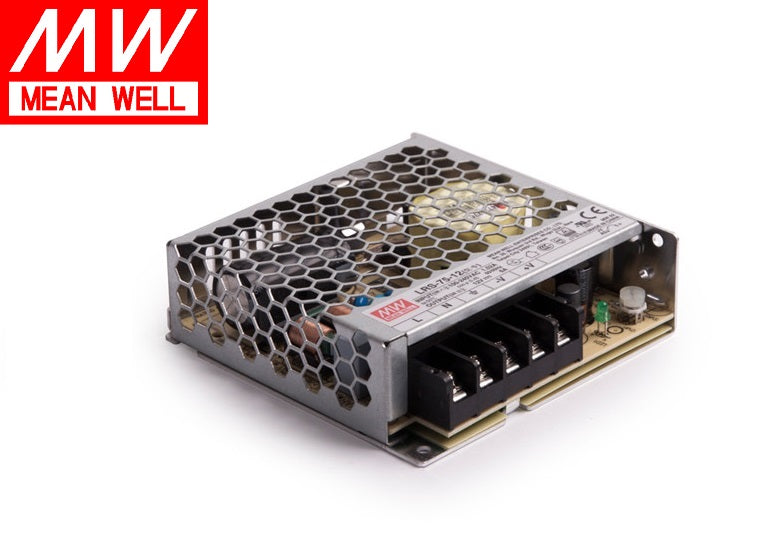

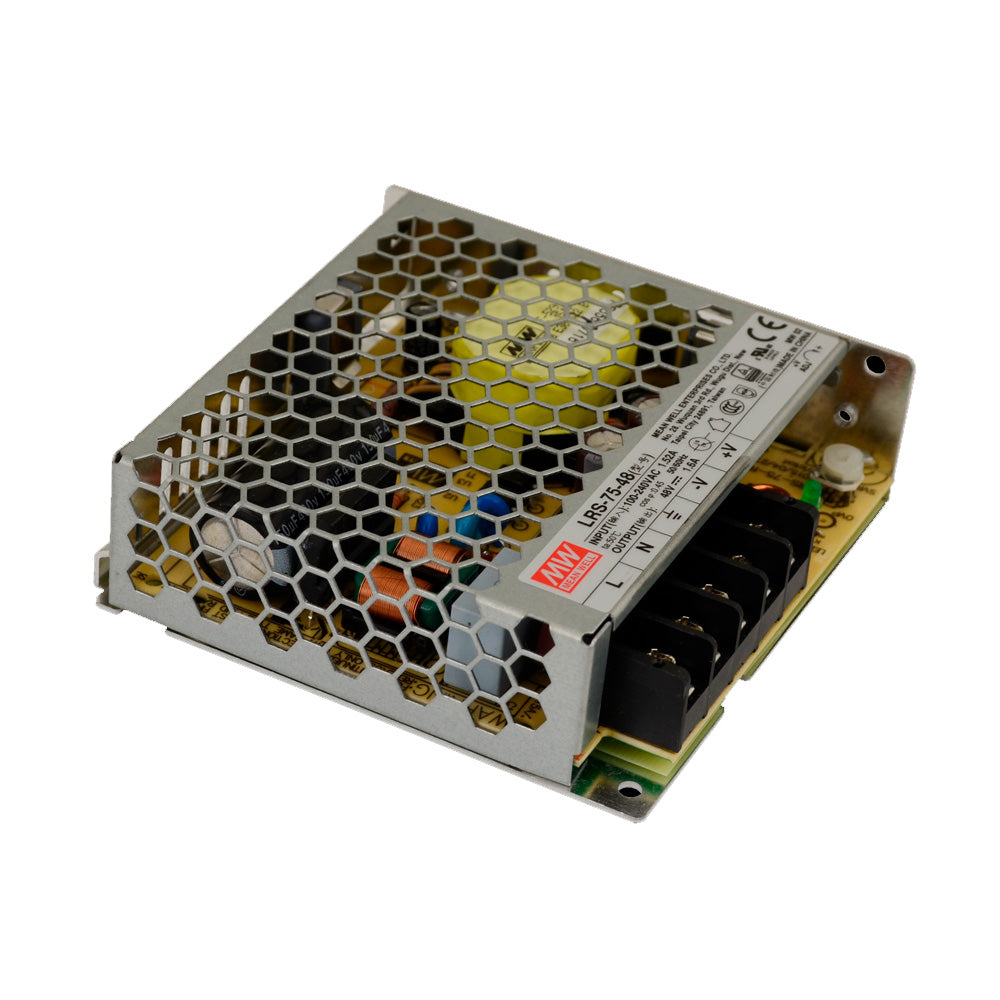

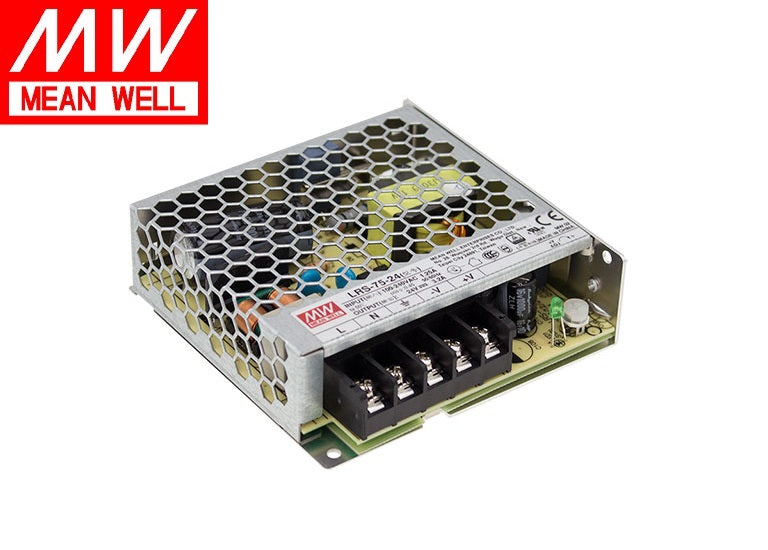

LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.
