Mean Well
Power supply LRS-600W
Power supply LRS-600W
Couldn't load pickup availability
The LRS Series 12, 24 and 48 volt AC/DC power supplies from Mean Well are reliable and compact solutions for powering LED equipment and other electronics. The LRS series is characterized by high efficiency (up to 90%) and improved heat dissipation design, which ensures stable operation in the temperature range of -30°C to +70°C. These power supplies have overheat, overload and short circuit protection, making them ideal for long-term use in professional and residential lighting applications.
- Premium Power Supply
- 3 year warranty

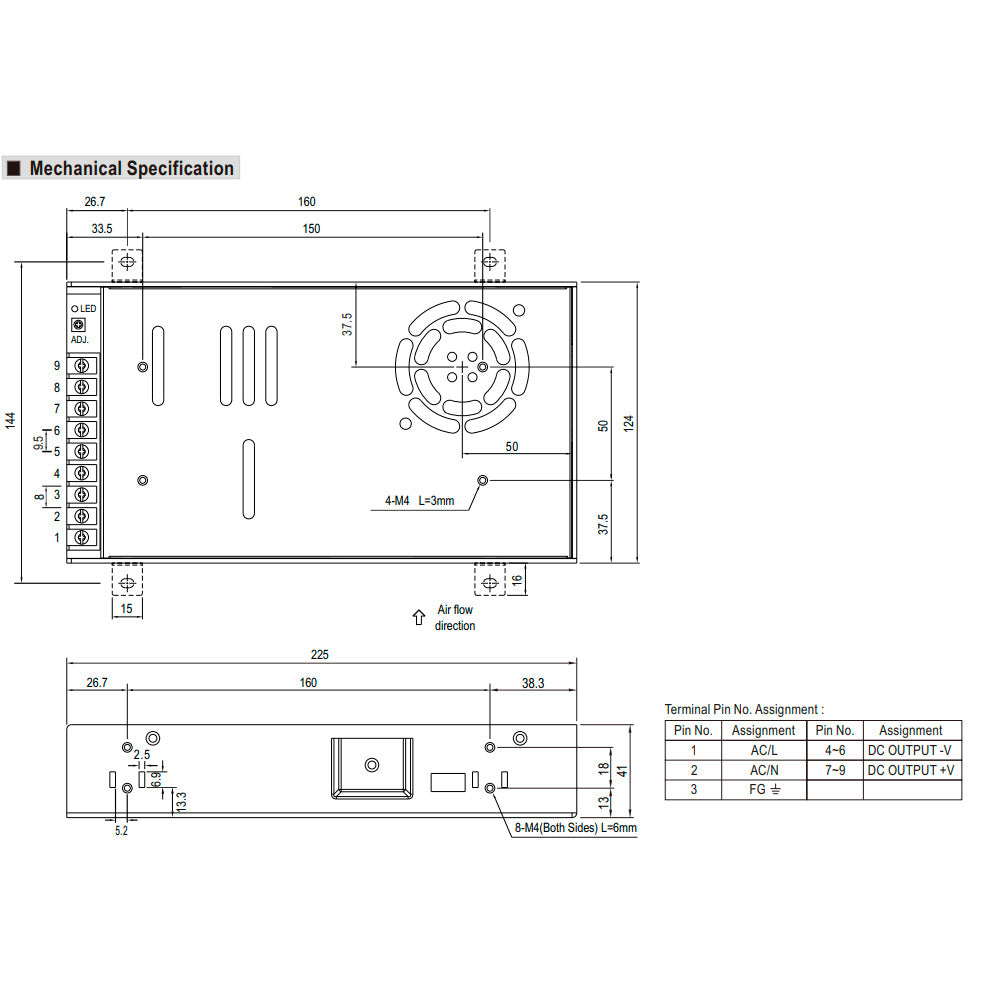

Dimensions
Dimensions
225x124x41mm
Product description
Product description
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
High operating temperature up to 70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/BS EN/EN 60335-1 (PD3) and
IEC/BS EN/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 24 / 48 Volts
Output current: 25 / 12.5 Ampere
Power consumption: 600 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description

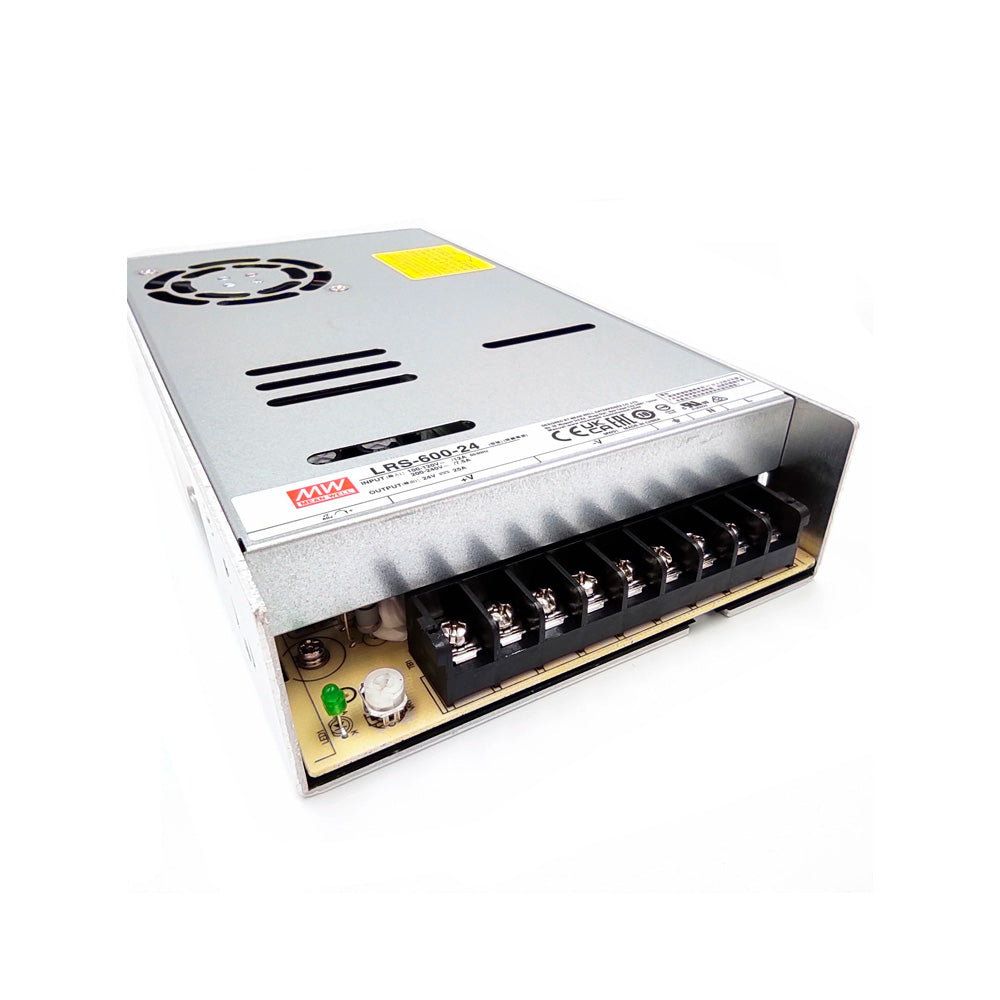

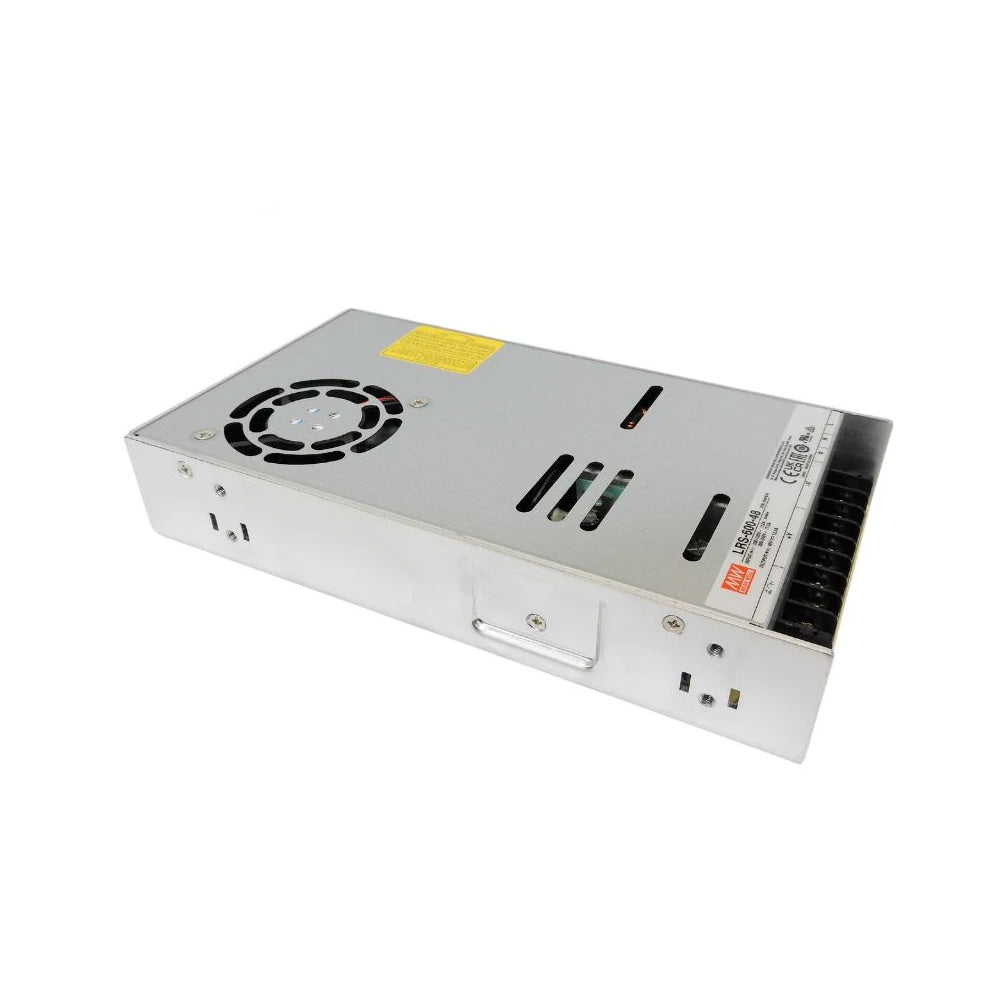

LRS-600 series is a 600W single-output enclosed type power supply with 41mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 27V, 36V and 48V. In addition to the high efficiency up to 92%, with the built-in long life fan LRS-600 can work under -20~+65°C with full load. LRS-600 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations. LRS-600 series serves as a high price-to-performance power supply solution for various industrial applications.
