Mean Well
Power supply LRS-150W
Power supply LRS-150W
Couldn't load pickup availability
The LRS Series 12, 24 and 48 volt AC/DC power supplies from Mean Well are reliable and compact solutions for powering LED equipment and other electronics. The LRS series is characterized by high efficiency (up to 90%) and improved heat dissipation design, which ensures stable operation in the temperature range of -30°C to +70°C. These power supplies have overheat, overload and short circuit protection, making them ideal for long-term use in professional and residential lighting applications.
- Premium Power Supply
- 3 year warranty
Dimensions
Dimensions
129x97x30mm
Product description
Product description
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
High operating temperature up to 70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/BS EN/EN 60335-1 (PD3) and
IEC/BS EN/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 12.5 / 6.5 / 3.3 Ampere
Power consumption: 150 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description

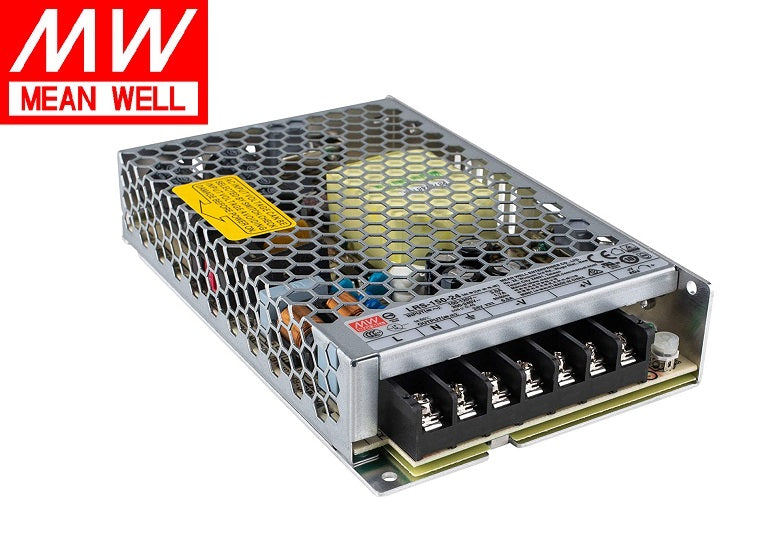

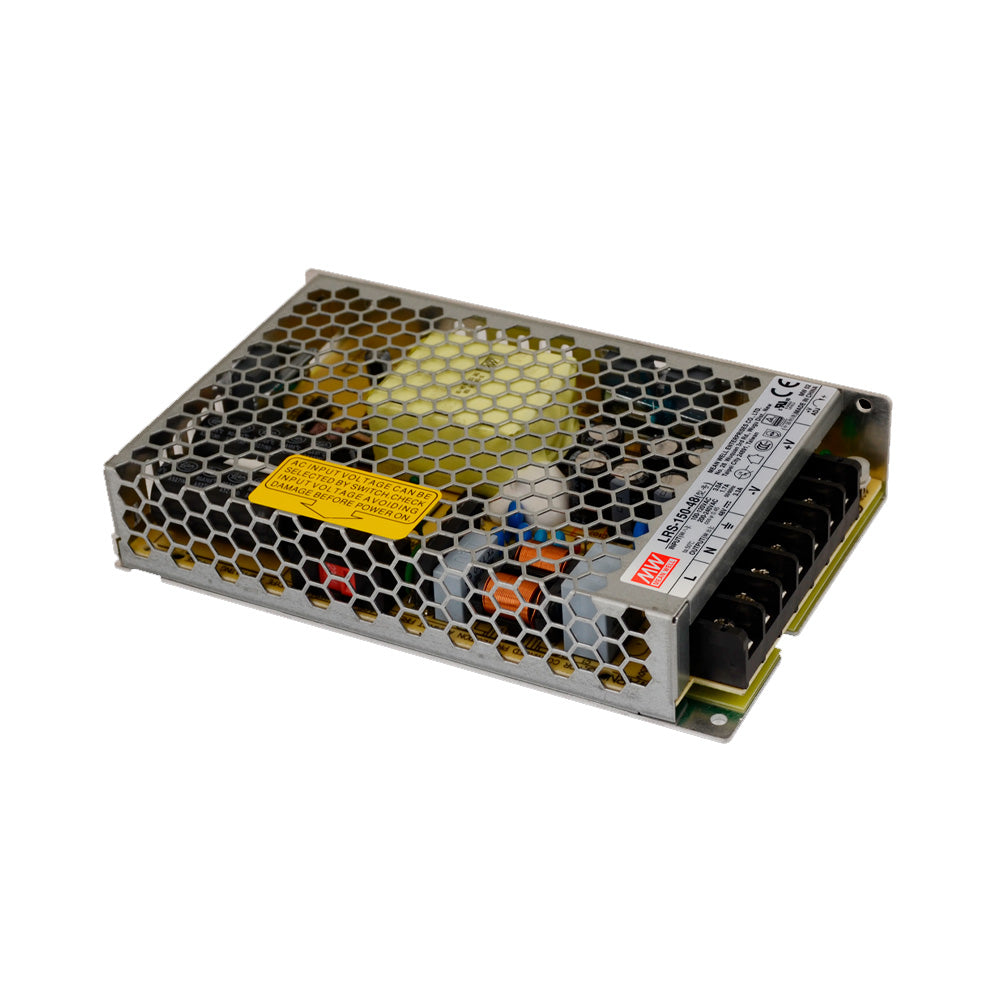

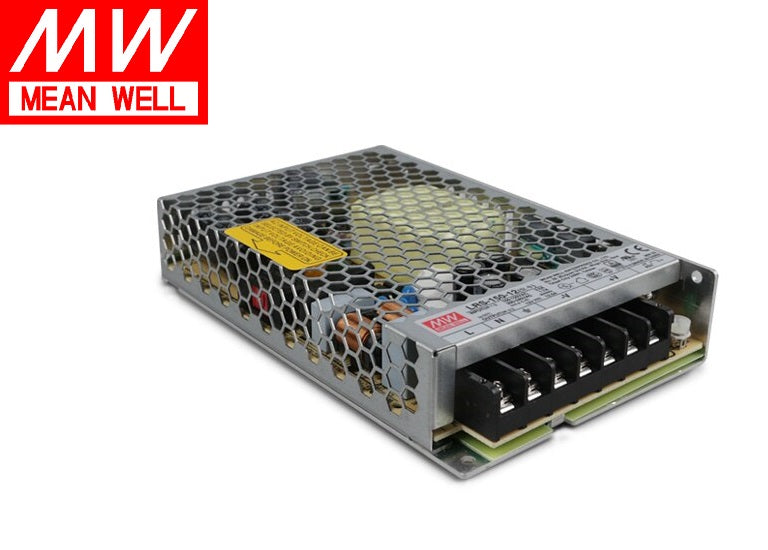

LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design.
Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS- 150 series serves as a high price-to-performance power supply solution for various industrial applications.
