Mean Well
Power supply LPV-35W
Power supply LPV-35W
Couldn't load pickup availability
The Mean Well LPV and LPV Series 12 and 24 volt IP67-rated waterproof power supplies are the ideal solution for outdoor and indoor lighting applications. These rugged units provide stable power and are protected against dust and moisture, making them an excellent choice for use in humid and outdoor environments. Mean Well LPH and LPV series are suitable for LED strip lights, landscape lighting, outdoor advertising systems and industrial equipment. High efficiency, compact size and long life ensure the safety and performance of your projects. Order Mean Well power supplies with IP67 protection and enjoy stable performance in any environment!
- Premium Power Supply
- 2 year warranty

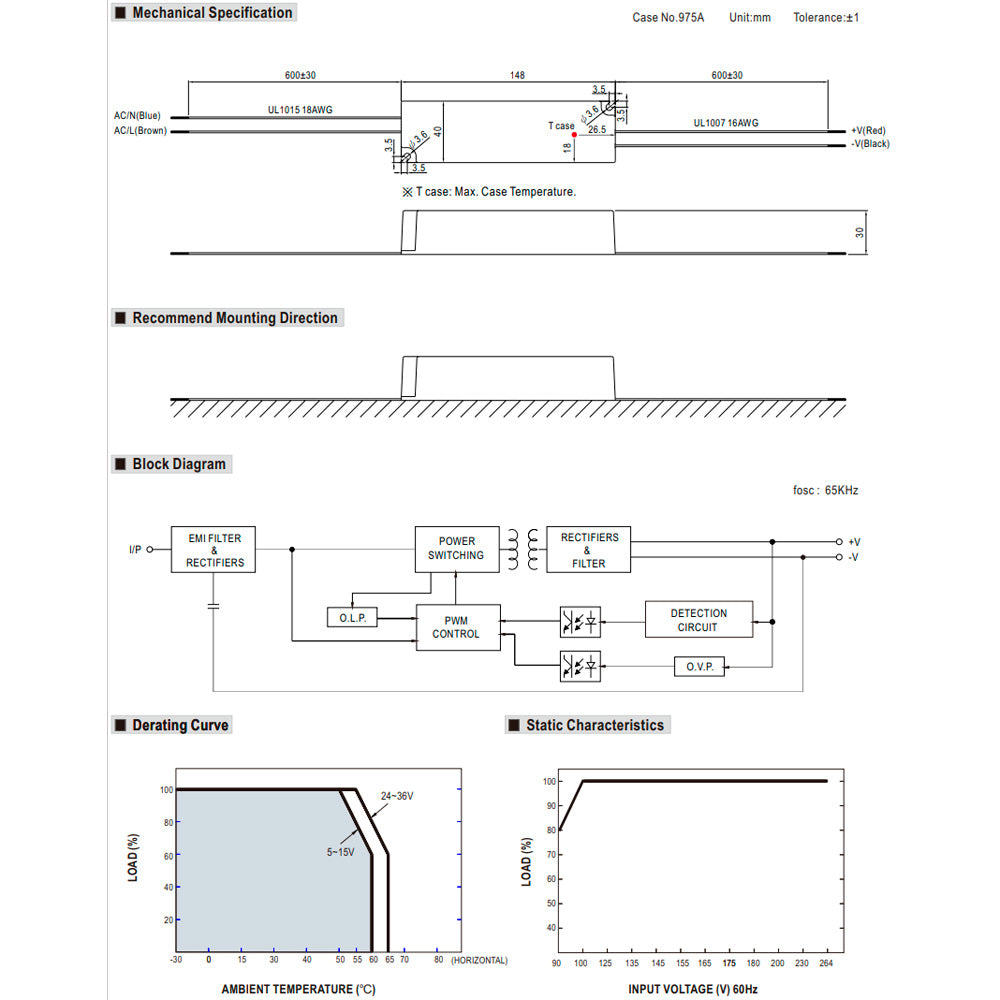

Dimensions
Dimensions
148x40x30 mm
Product description
Product description
Constant voltage design
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level
Fully isolated plastic case
Class II power unit, no FG /Class 2 power unit / Pass LPS
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test Low cost, high reliability
2 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 Volts
Output current: 3 / 1.5 Ampere
Power consumption: 35 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
LPV-35 series is one 35W AC/DC constant voltage mode single output LED power supply. It accepts the full range input 90~264VAC and provides three models with different output voltage, 5v, 12v, 24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class Il design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, LPV-35 ideally fits the entry-level LED applications.
