Mean Well
Power supply LPV-150W
Power supply LPV-150W
Couldn't load pickup availability
The Mean Well LPV and LPV Series 12 and 24 volt IP67-rated waterproof power supplies are the ideal solution for outdoor and indoor lighting applications. These rugged units provide stable power and are protected against dust and moisture, making them an excellent choice for use in humid and outdoor environments. Mean Well LPH and LPV series are suitable for LED strip lights, landscape lighting, outdoor advertising systems and industrial equipment. High efficiency, compact size and long life ensure the safety and performance of your projects. Order Mean Well power supplies with IP67 protection and enjoy stable performance in any environment!
- Premium Power Supply
- 2 year warranty

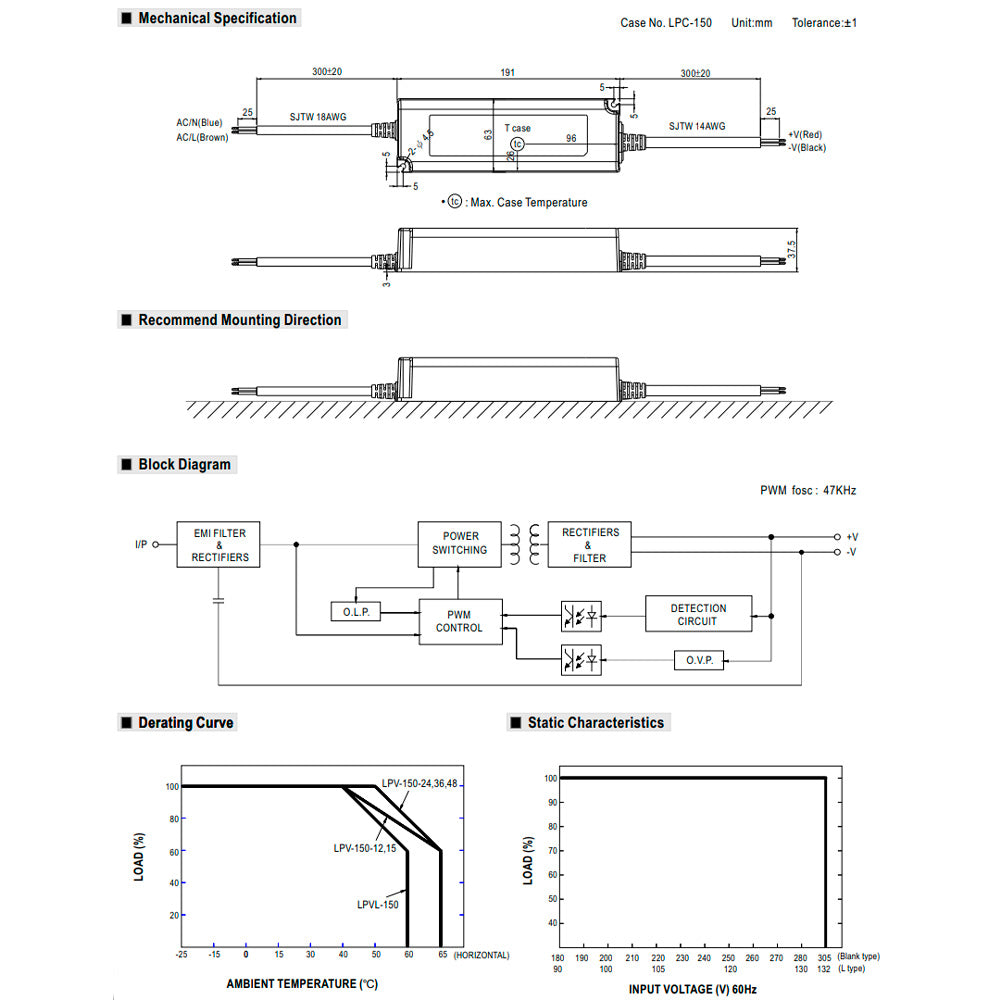

Dimensions
Dimensions
191x63x37.5 mm
Product description
Product description
Constant voltage design
90-132VAC input for LPV-150 180-305VAC input for LPV-150
Fully encapsulated with IP67 level
Class II power unit, no FG
Protections: Short circuit/Overload/Over voltage/ Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Listed in UL Sign Component Manual (SAM)
Type "HL" for use in class I, Division 2 hazardous (Classified) location luminaires for LPV-150
2 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 10 / 6.3 / 3.2 Ampere
Power consumption: 150 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for
LED lighting and LED moving sign applications. As a class Il power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.
