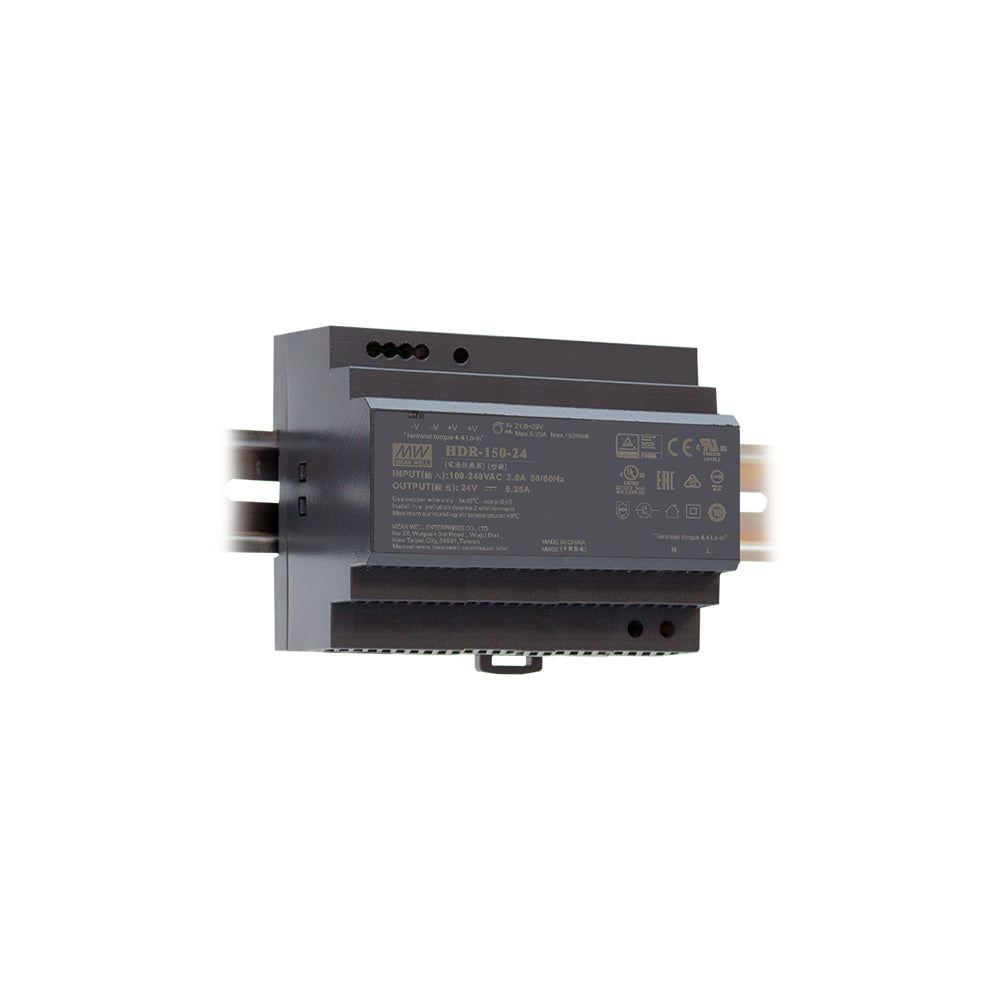

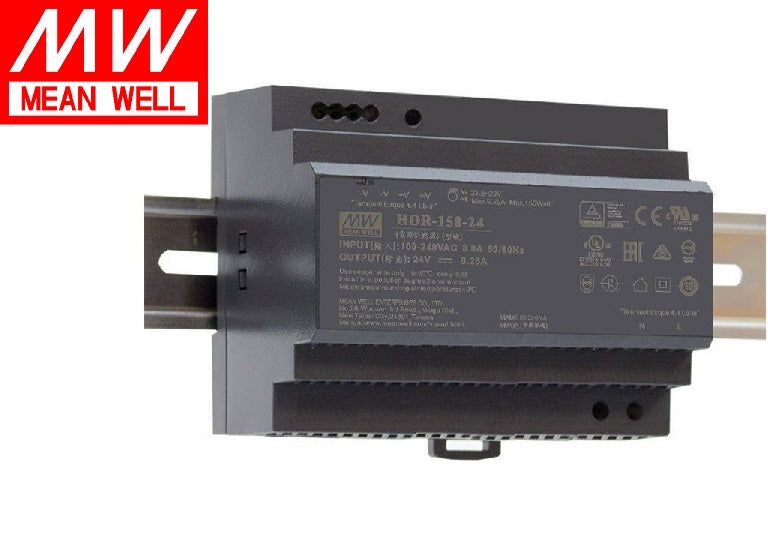

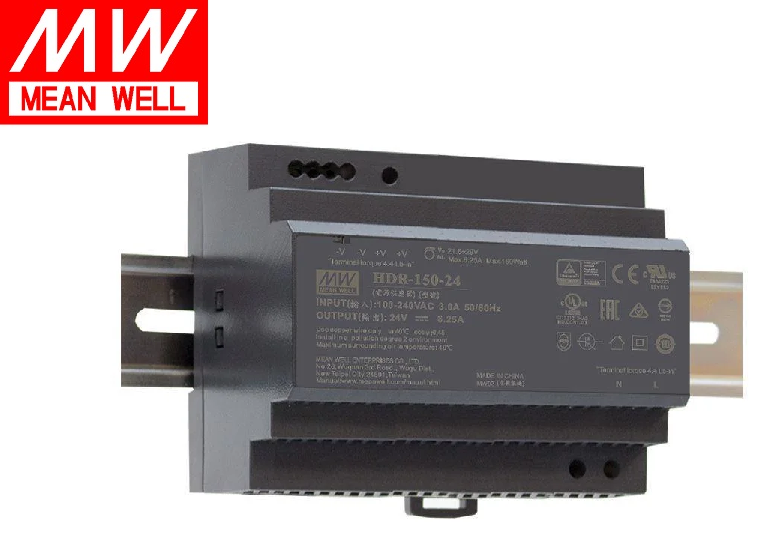

Power supply HDR-150W
Power supply HDR-150W
Couldn't load pickup availability
Mean Well HDR-150 Series 12, 24 and 48 volt DIN rail mount power supplies are compact and reliable power supplies for automation, lighting control and industrial applications. These power supplies are suitable for installation in distribution boards and provide stable voltage under a variety of conditions. The HDR series from Mean Well features high efficiency, overload protection, compact size and low power consumption. The ideal choice for industrial and home applications where ease of installation and power stability are required. Order HDR units for your DIN rail and keep your systems running smoothly!
- Premium Power Supply
- 3 year warranty

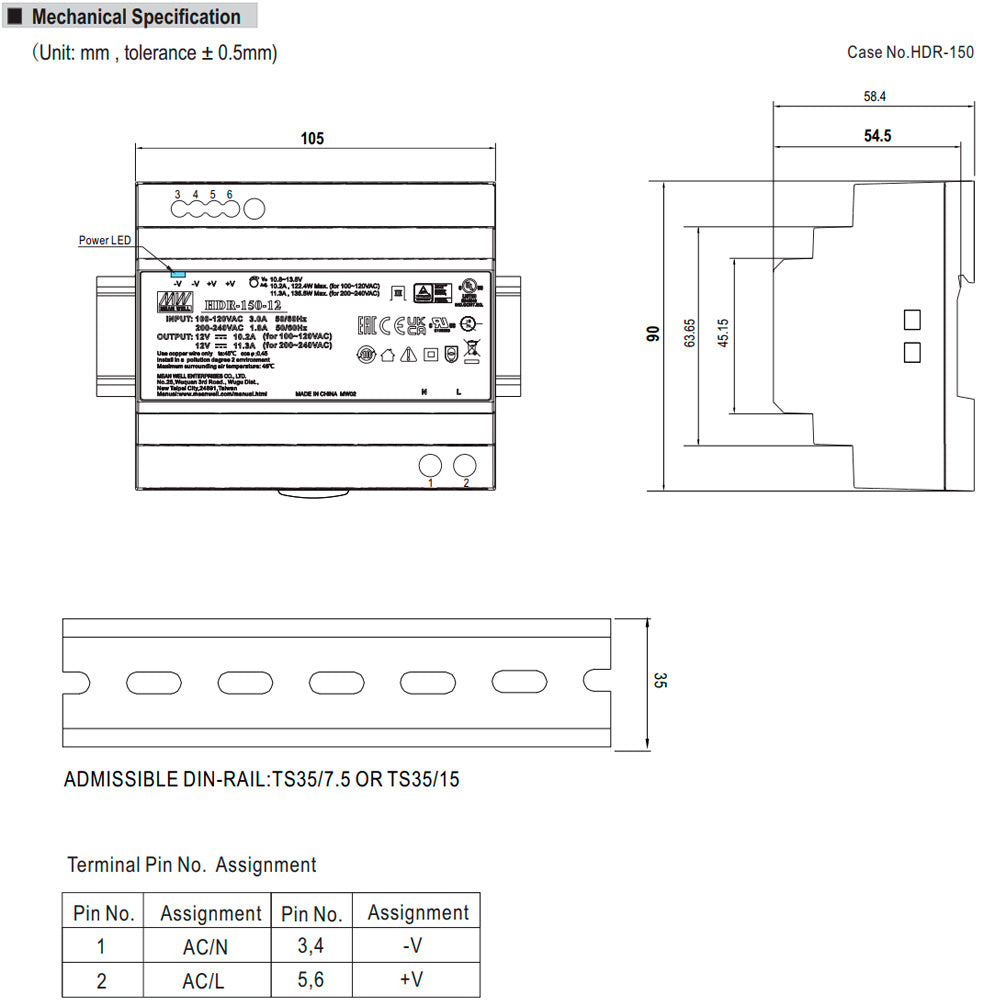

Dimensions
Dimensions
58.4x105x90 mm
Product description
Product description
Ultra slim design with 105mm(1SU) width
Universal input 85-264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class Il
Pass LPS (Limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature: -30~+70°C)
DIN rail TS-35/7.5 or 15 mountable
LED indicator for power on
3 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 / 48 Volts
Output current: 11.3 / 6.25 / 3.2 Ampere
Power consumption: 150 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
HDR-150 is one economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm (2SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-60 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL508,UL62368-1, BS EN/EN61558-2-16) make HDR-150 a very competitive power supply solution for household and industrial applications.
