Mean Well

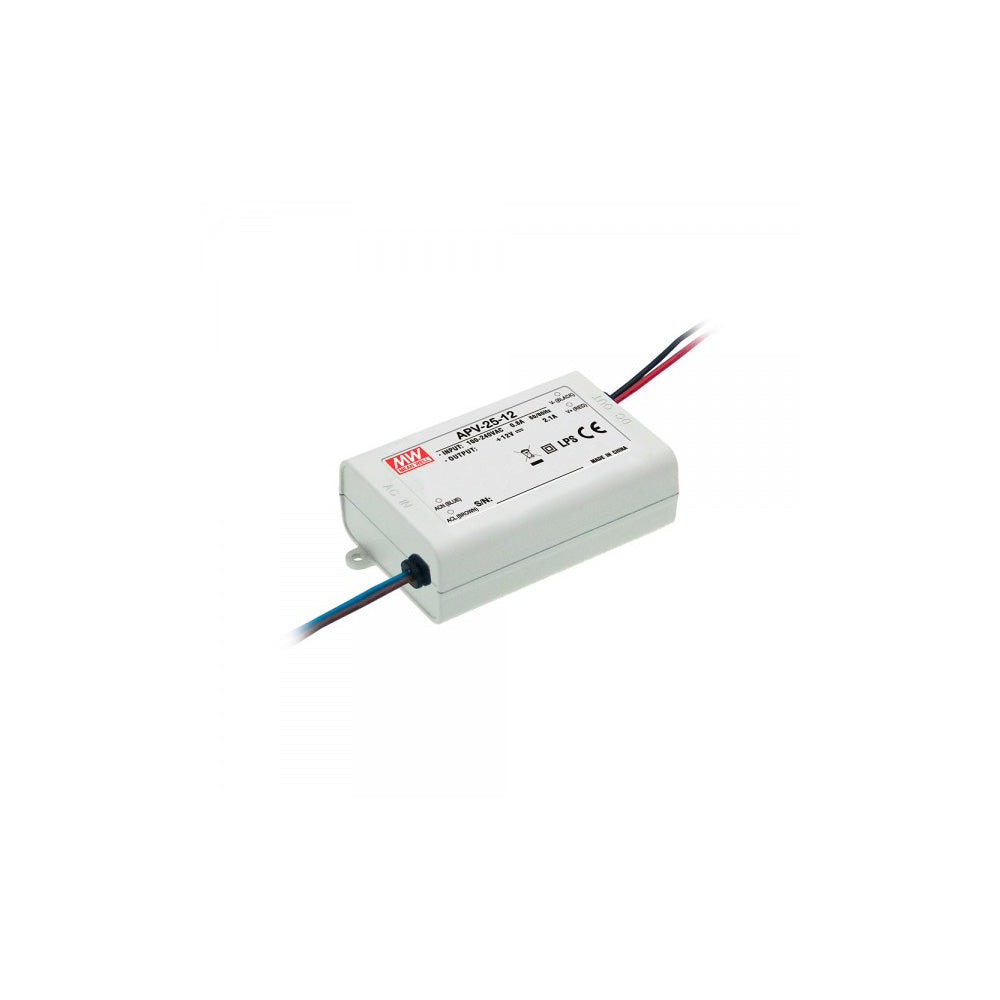

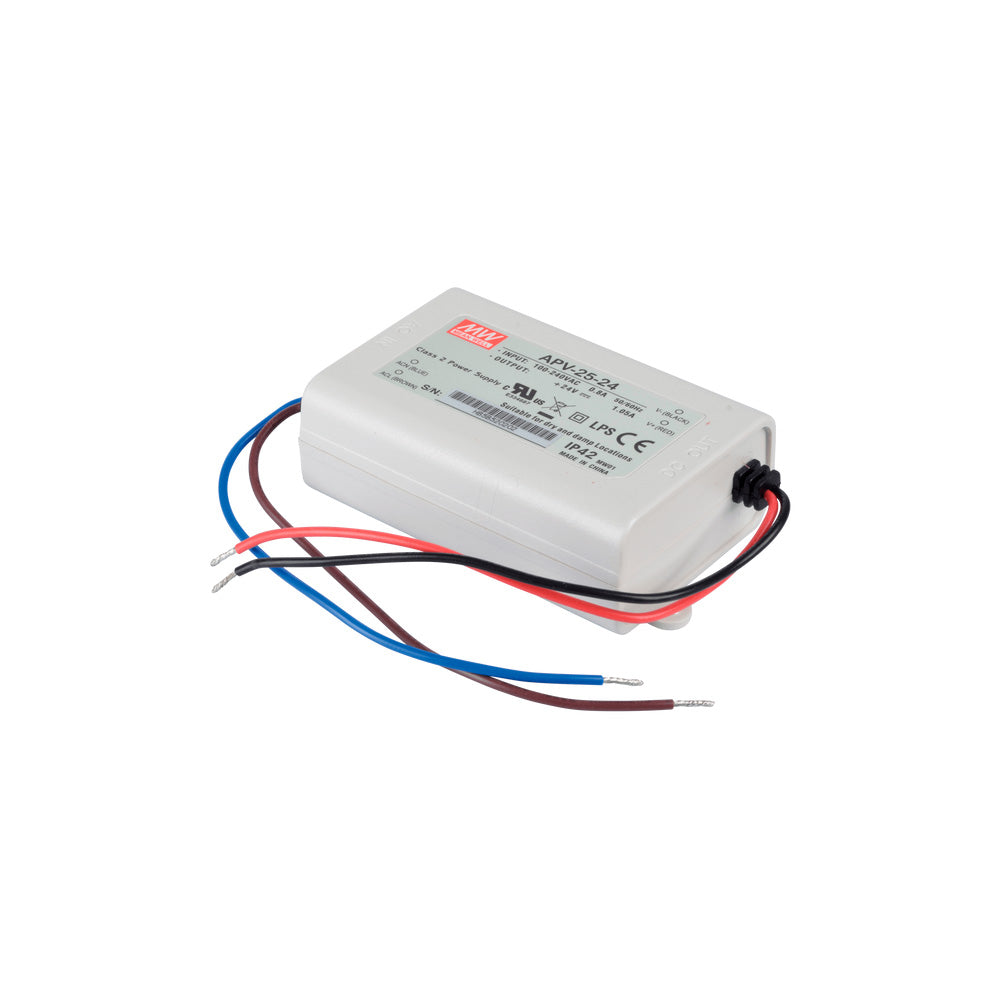

Power supply APV-25W
Power supply APV-25W
Couldn't load pickup availability
Mean Well APV series 12 and 24 volt power supplies with IP42 protection class are a reliable solution for powering LED strips and other devices. Compact and energy efficient, Mean Well APV power supplies provide stable voltage and meet international safety standards. Excellent choice for use in dry areas where high quality and safety of power supply is required. Mean Well APV units are suitable for indoor lighting, automation systems and industrial installations, ensuring long life and low power consumption. Order now and get a reliable power supply with official warranty and fast delivery!
- Premium Power Supply
- 2 year warranty

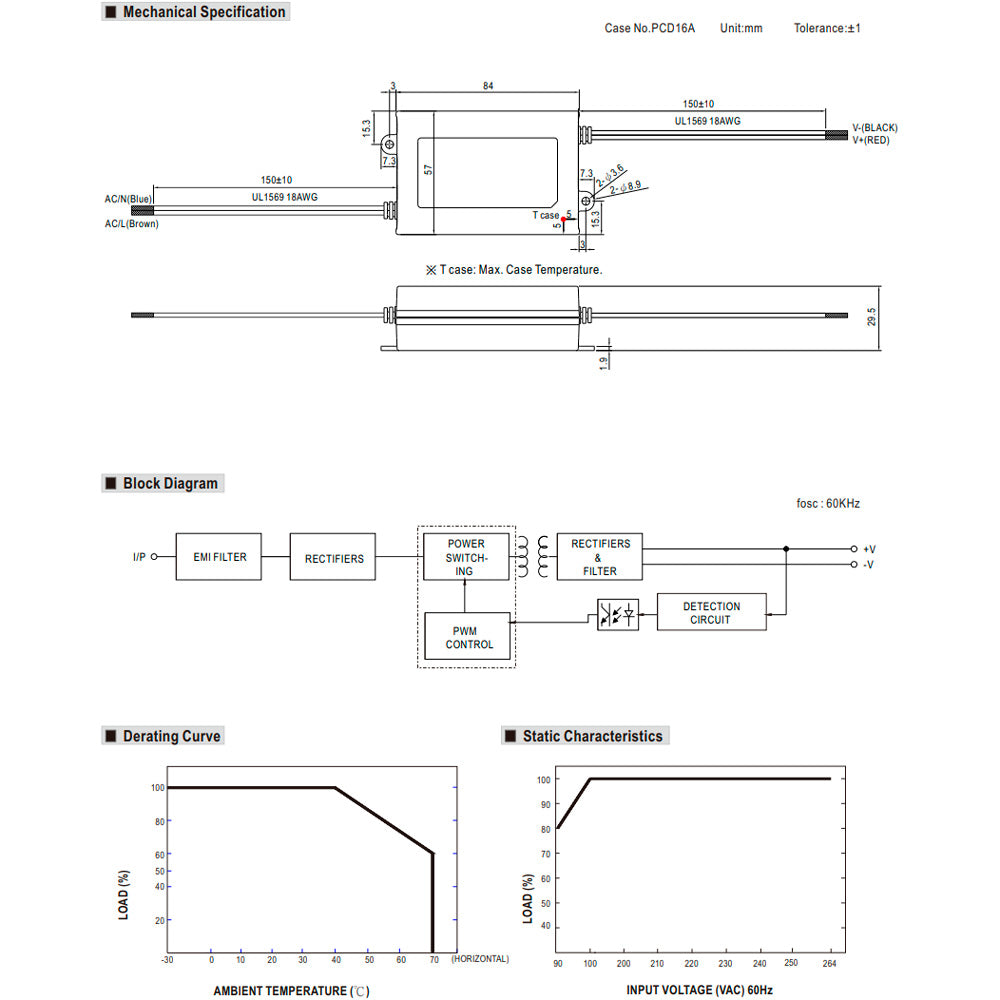

Dimensions
Dimensions
84x57x29.5 mm
Product description
Product description
Constant voltage design
Universal AC input / Full range
Class II power unit, no FG
Fully isolated plastic case
IP42 design
Small and compact size
Cooling by free air convection
Protections: Short circuit / Overload / Over voltag
No load power consumptibn <0.5W
100% full load burn-in test
Low cost, high reliability
2 years warranty
Specifications
Specifications
Housing: In the casing
Type of power supply: switching power supply
Operating voltage: 85...264 VAC / 120...373 VDC
Output voltage: 12 / 24 Volts
Output current: 2.1 / 1.05 Ampere
Power consumption: 25 W
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
APV-25 series is one 25W AC/DC constant voltage mode single output LED power supply. It accepts the full range input 90~264VAC and provides three models with different output voltage, 5v, 12v, 24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class Il design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-25 ideally fits the entry-level LED applications.
