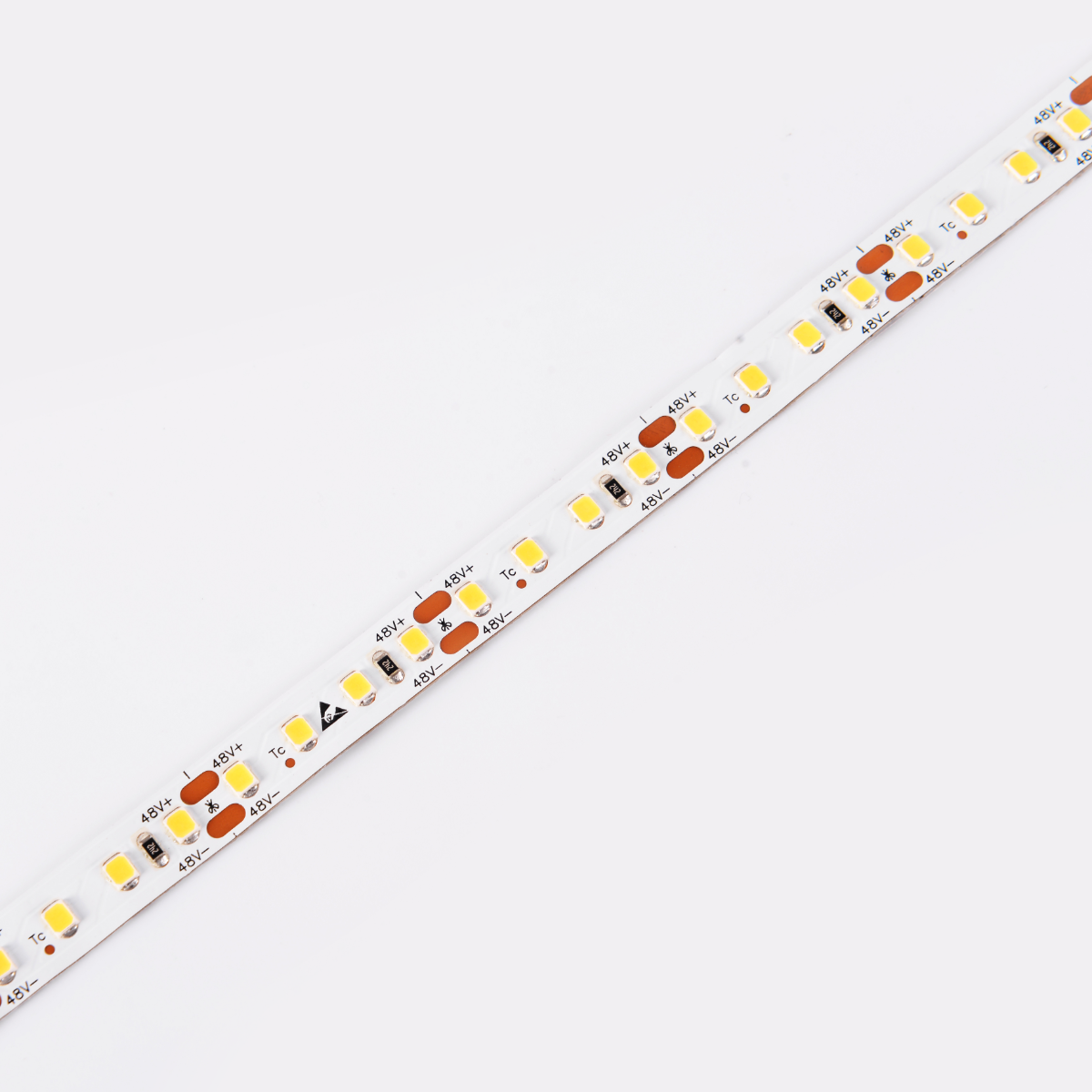

LED strip COLORS 2835-120-48V 9.6W 860Lm (D8120-48V-10mm)
LED strip COLORS 2835-120-48V 9.6W 860Lm (D8120-48V-10mm)
Couldn't load pickup availability
The **D8120-48V-10mm LED Strip** by COLORS® is a powerful, ultra-long LED strip designed for flexible lighting needs in large spaces. Max.length is 30 meters driven by one end strips is of lower current with 48V input，better for longer wire connection, ultra long application with less power feed,high cost efficiency for project system. With life span over 36000H Ta: -25~40°C; Tc: 75°C (max)
The price is for 5 meters of LED strip.
Important: sale of LED tape in multiples of 5 meters (1 reel)
- Premium LED Strip
- Front light
- Ra 80+
- 3 year warranty
Dimensions
Dimensions

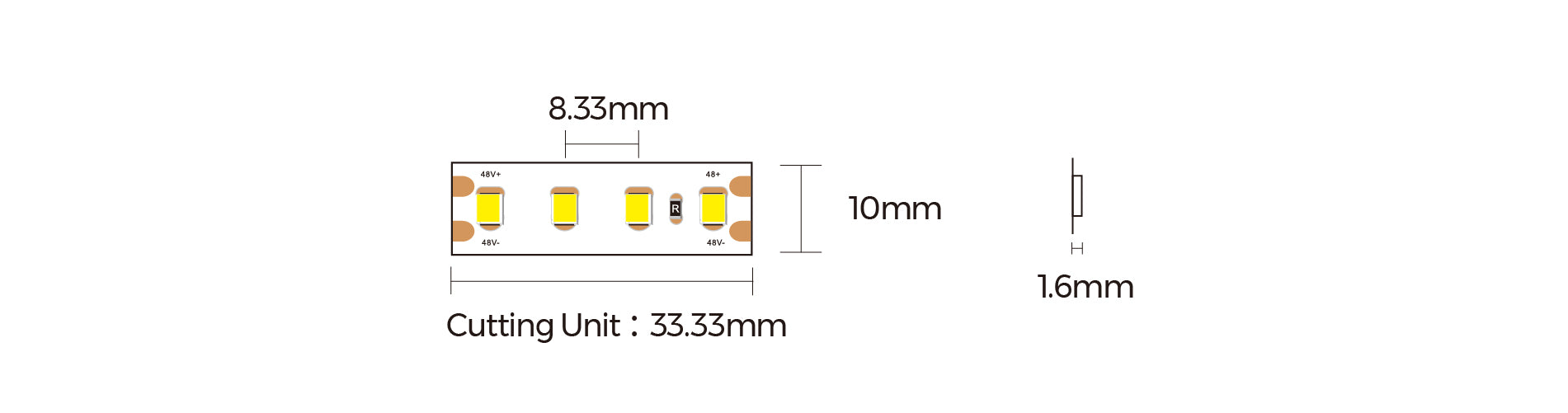

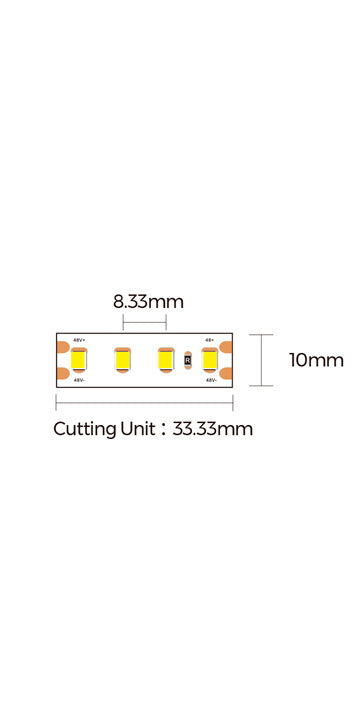

5000 x 10 mm
Product description
Product description
Warm white: 3000K
Neutral white: 4000K
Specifications
Specifications
Manufacturer: China
Type: Premium
Protection type: IP33
Working voltage: 48 Volt.
Power: 9.6 watts from 1 meter
Light output: 860 Lumens
LED type: SMD 2835
Number of LEDs per meter: 120 pcs
Service life: 50 000h
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
[Precautions]
· Please drive the led strip with 48VDC isolated power, and the ripple of the constant voltage source should be less than 5%.
· Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
· Do not fold it in case any damage of LED beads.
· Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
· Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with
the voltage of the strip to avoid damage.
· LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40
℃.Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less
than 70%.
· Please be careful during operation. Do not touch the AC power supply in case of electric shock.
· Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the
product.
· Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
· Do not scratch the product when IP processof the product is NA. Ultraviolet rays will damage the nano-layers on the
product and seriously affect the life of the product.
