LED driver SUNRICHER DIM RF-Radio 24V 50W (SRP-1009-24-50CV)
LED driver SUNRICHER DIM RF-Radio 24V 50W (SRP-1009-24-50CV)
Couldn't load pickup availability
The SRP-1009-50W-CV is a 50W 24V constant voltage LED driver that supports smooth dimming up to 0.1% flicker-free. Compatible with SR-1009 remotes and WiFi control via iOS and Android apps. Provides high efficiency (over 85%) and power factor >0.9
Price is per 1 pc
- Premium LED driver
- 1-channel 24V DC output
- 3 year warranty

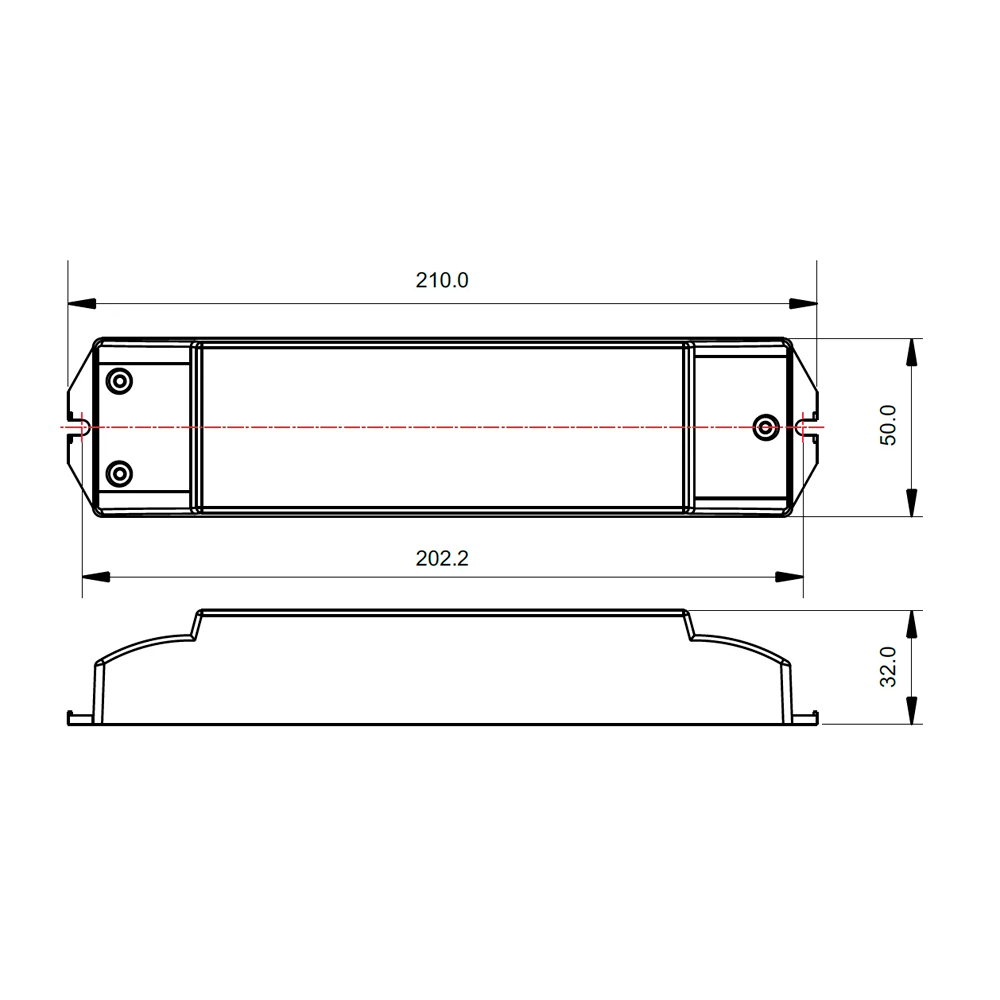

Dimensions
Dimensions
50x210x32 mm
Product description
Product description
constant voltage dimmable LED driver, maximum output power 50W;
1-channel 24VDC output;
Class II power supply, fully insulated plastic housing;
ruby capacitors;
RF receiver, frequency 869.5MHZ/916.5MHz/434MHZ;
input voltage: 200-240 V AC;
built-in active PFC function;
power factor PF > 0.9, efficiency > 85%;
PWM dimming, smooth and deep dimming down to 0.1%, flicker-free;
compatible with SR2833TS/K4/K5/K8;
IP20 protection, suitable for indoor lighting.
Specifications
Specifications
Manufacturer: China
Type: Premium
Protection type: IP33
Input voltage: 200-240 Volt.
Output voltage: 24 Volt.
Output current: 2.08 A
Output power: 50 Watt.
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
The SRP-1009-50W-CV is a high-performance 50W constant voltage LED driver, offering dimming capabilities with a single 24VDC output channel. Designed to operate within a 200-240VAC input voltage range, it features a power factor exceeding 0.9 and an efficiency rate of over 85%. This driver ensures seamless and ultra-deep dimming down to 0.1% without any flickering. Equipped with an RF control interface, it is fully compatible with the SR-1009 series RF remotes. By integrating a WiFi-RF transmitter, it can be managed through an app available for both iOS and Android devices. Additionally, the driver supports brightness adjustment when connected to a standard switch, enhancing its versatility and ease of use.
