SUNRICHER
LED driver SUNRICHER DIM DALI 8-46V, 30W (SRP-TRIAC-24-30CV)
LED driver SUNRICHER DIM DALI 8-46V, 30W (SRP-TRIAC-24-30CV)
Couldn't load pickup availability
SRP-TRIAC-24-30CV SUNRICHER
1-channel DALI LED driver with 24VDC output, compliant with IEC 62386 standards. Features DALI-2/Push interface, Class II insulation, active PFC (PF >0.9), and >86% efficiency. Offers digital PWM dimming, overload and overheat protection, and an IP20 rating for indoor use.
Price is per 1 pc
- Premium LED driver
- 1-channel 24V DC output
- 3 year warranty

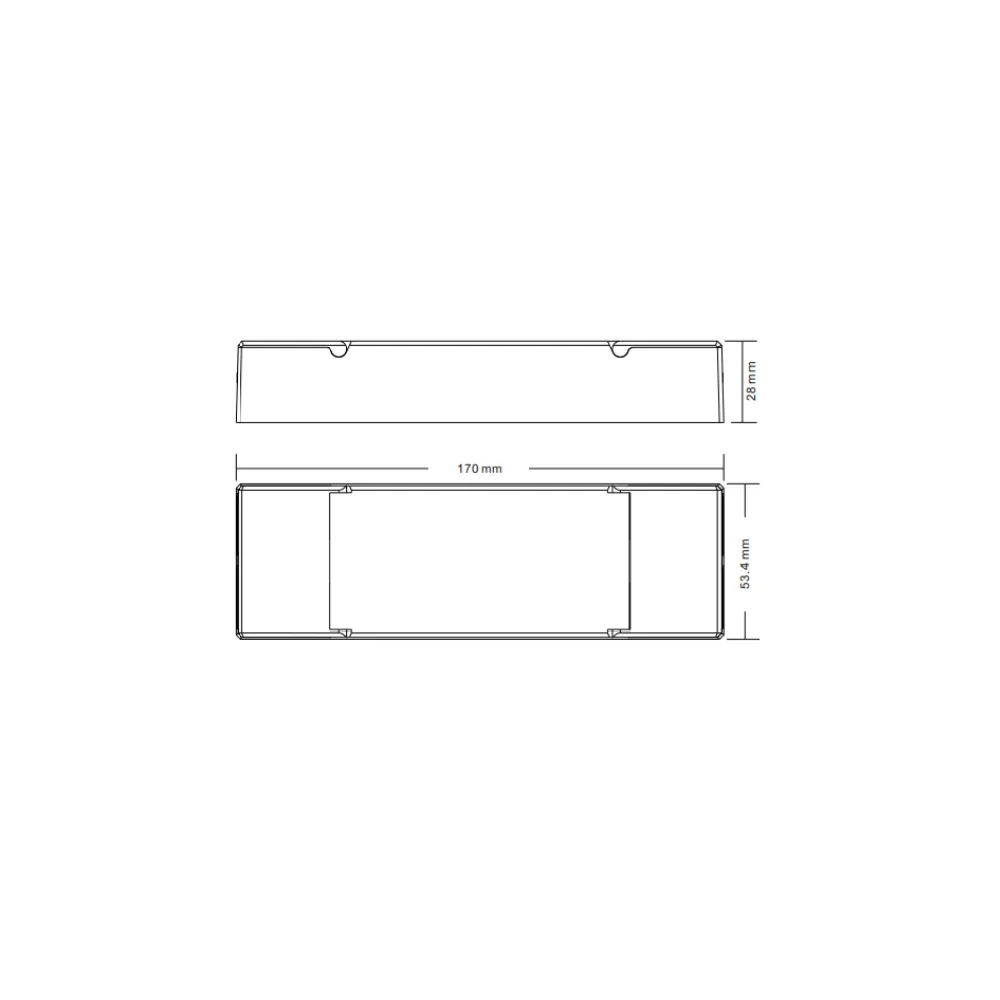

Dimensions
Dimensions
170x53.4x28mm
Product description
Product description
- 1 DC voltage channel 24 V DC
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
- Built-in DALI-2/Push interface, DALI DT6 device
- Class Ⅱ power supply, fully insulated plastic housing
- Built-in active PFC function
- PF > 0.9, EFFICIENCY > 86%
- PWM digital dimming, DALI standard logarithmic dimming curve
- Complies with safe extremely low voltage standard.
- Protection against overload, overheating
- IP20 rating, suitable for indoor LED lighting
3 years warranty
Specifications
Specifications
Manufacturer: China
Type: Premium
Protection type: IP33
Input voltage: 200-240 Volt.
Output voltage: 24 Volt.
Output current: 1.25 A
Output power: 30 Watt.
Shipping
Shipping
We ship all orders within 5-10 business days!
Share
Description
SRP-TRIAC-24-30CV SUNRICHER
This 1-channel DALI LED driver operates with a 24VDC output voltage and adheres to IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-207 Ed2 standards. Equipped with a DALI-2/Push interface and a Class II power supply, it features a fully insulated plastic housing. The driver incorporates an active power factor correction (PFC) function, achieving a PF greater than 0.9 and efficiency exceeding 86%. Utilizing digital PWM technology, it offers dimming via the standard DALI logarithmic dimming curve. Designed for safety, it complies with extra-low voltage standards and includes overload and overheat protection. With an IP20 rating, it is ideal for indoor LED lighting applications.
