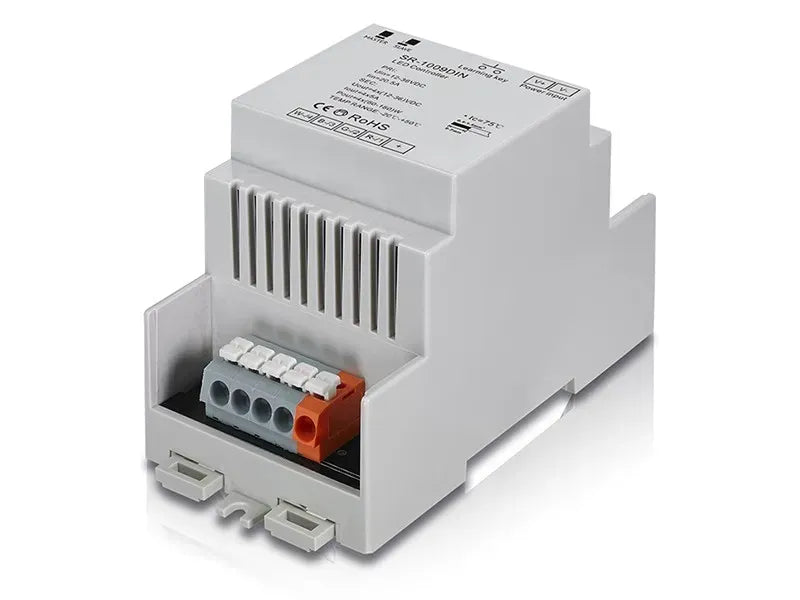

LED controller receiver (SR-1009DIN)

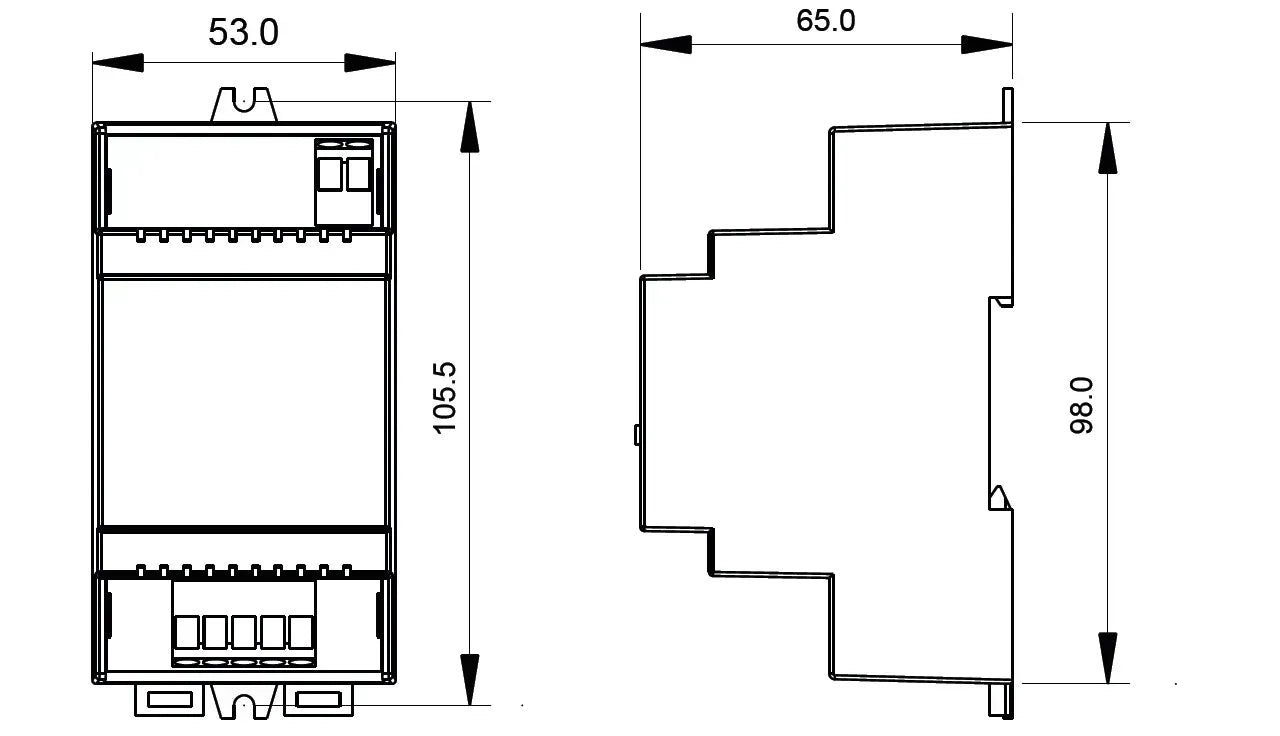

110x53x65mm

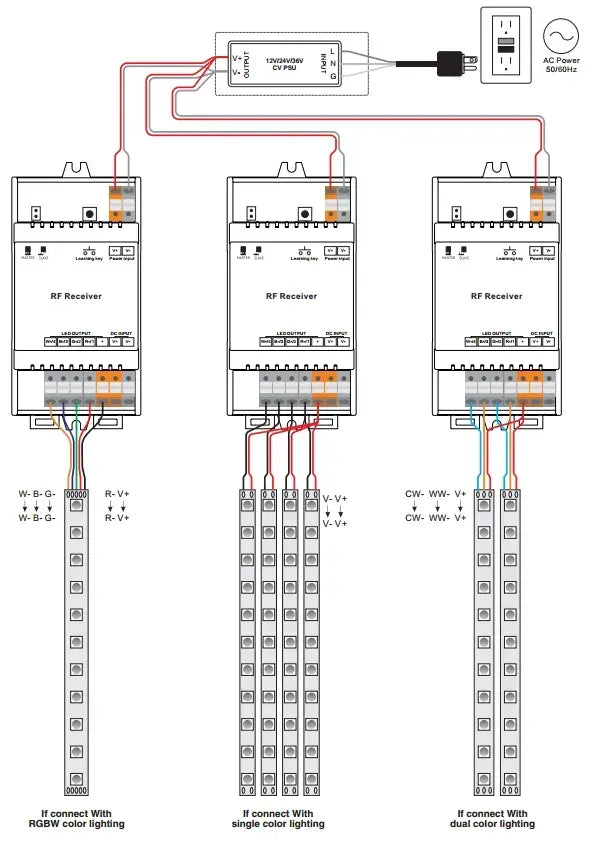

Do wiring according to connection diagram.
Pair RF Receiver with RF remote:
1. Connect and wire up the RF receiver correctly, power on.
2. Turn on the remote, click the “Learning Key” button on receiver, immediately click a zone number to pair the
receiver to the specified zone if the remote is a multi-zone controller (if it is a single zone remote, this step is
unnecessary), then touch the color wheel or slider bar on the remote (if the remote does not have color wheel or
slider bar, click or touch any keys), the connected led light on receiver flickers twice, which means well paired.
Note: one receiver can be paired with max 8 remote controls.
Delete the pairing:
1. Wire up the RF receiver correctly, power on.
2. Hold down the “ Learning Key” button on receiver for over 3 seconds until the connected led light on
receiver flickers twice, which means well deleted.
MASTER/SLAVE jumper:
In a group of multiple receivers, in order to get a good sync of RGB running effect, please set only 1 receiver as
MASTER, the other receivers as SLAVE.
After setting the Master, the Master receiver need to power off and on once to make the Master function take
effect.

Manufacturer: China
Type: Premium
Protection type: IP20
Input voltage: 12-36 Volt.
Output power: 60-180 Watts.
Output Current:
4x5A - 4x(60-180)W
4x350mA - 4x(4.2-12.6)W
4x700mA - 4x(8.4-25.2)W
